| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Height | |
| Hole Diameter | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

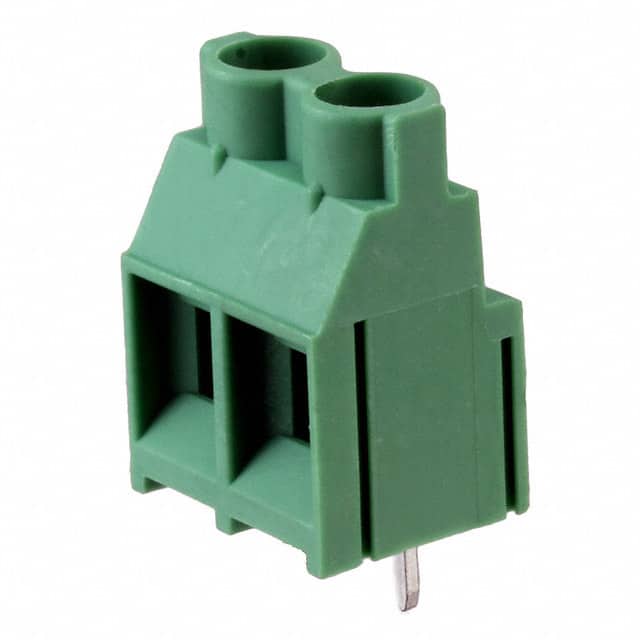

The Phoenix Contact MKDS 5/ 2-7,62 (order number 1868076) is a 2-position PCB terminal block with a 7.62 mm pitch, designed for wire-to-board connections. It features a screw connection with a rising cage clamp for secure and reliable termination of solid or stranded conductors up to 6 mm² (10 AWG). The terminal block is rated for a nominal current of 32 A and a nominal voltage of 500 V, with a maximum load current of 32 A when using a 6 mm² conductor. It is suitable for use in industrial control, power distribution, and building automation applications.
The component is mounted via through-hole soldering with a horizontal mating orientation (0° conductor/PCB connection direction). The green insulating body is made of PA (polyamide) with a flammability rating of UL 94 V0. The terminal block features side interlocking, allowing multiple units to be combined to create assemblies with different numbers of positions. The M3 screw requires a tightening torque of 0.5 to 0.6 Nm, and the recommended stripping length is 8 mm. The product is RoHS and REACH compliant, with an MSL of 1 (unlimited).
It has 2 positions.
The pitch is 7.62 mm.
The nominal current is 32 A (IEC) and the maximum load current is 32 A with a 6 mm² conductor. The UL/CUL rating for Use Group B is 30 A.
The nominal voltage is 500 V (IEC). The rated voltage for UL/CUL Use Group B is 300 V.
It uses through hole mounting (soldering).
It accepts solid conductors from 0.2 to 6 mm² (24 to 10 AWG) and stranded conductors from 0.2 to 4 mm² (24 to 10 AWG).
The insulating material is PA with a flammability class of UL 94 V0.
