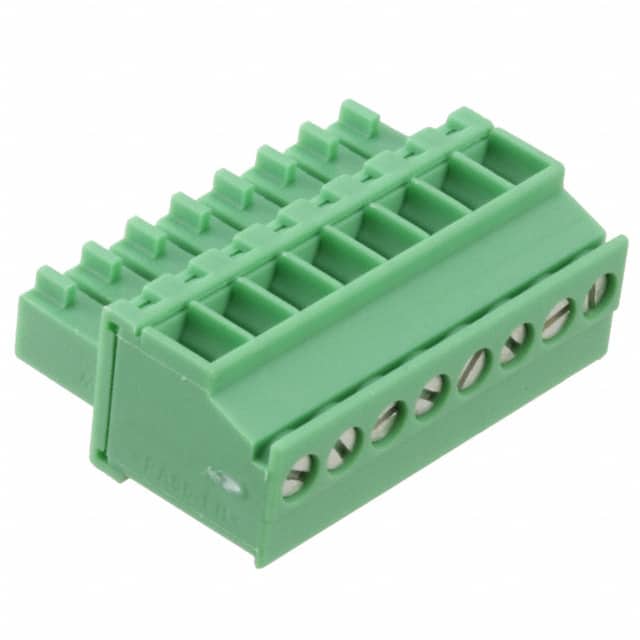

1863217 8-position terminal block plug from Phoenix Contact with 3.5mm pitch and 90° wire entry. Features screw termination with rising cage clamp and free hanging mounting.
Mfr Part #:

1863217

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
8-position terminal block plug from Phoenix Contact with 3.5mm pitch and 90° wire entry. Features screw termination with rising cage clamp and free hanging mounting.
✓ Total Stock: 27 pcs

1863217 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1863217 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1863217 Description

Short technical summary and product information.

The Phoenix Contact 1863217 is a terminal block plug with 8 positions arranged in a single level. It features a 3.5mm pitch (0.138 inches) and a 90° plug wire entry angle for space-constrained applications. The plug uses a screw termination with a rising cage clamp mechanism, providing secure wire connections for wire gauges from 0.14 to 1.5 mm².



Rated for 300 V and 8 A, this plug is suitable for industrial control and signal wiring. The free hanging (in-line) mounting style allows flexible installation without a fixed panel mount. The housing is green in color, and the contact mating finish is tin. The component is indicated as RoHS compliant and REACH unaffected, with an MSL (Moisture Sensitivity Level) of 1 (unlimited).



This plug is part of Phoenix Contact's terminal block system and is designed for use with corresponding headers. It is commonly used in automation, instrumentation, and power distribution applications where reliable and tool-free wire connections are needed.

1863217 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1863217 Terminal Block Plug, 8 Positions, 3.5mm Pitch, Screw Termination, Free Hanging, 90° Wire Entry
Subcategory: Headers, Plugs and Sockets

1863217 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1863217 Features

  • 8 positions with 3.5mm pitch in single level.
  • 90° wire entry for space-saving routing.
  • Screw termination with rising cage clamp.
  • Rated for 300V and 8A operation.
  • Free hanging (in-line) mounting style.

1863217 Applications

  • Used in industrial control panel wiring.
  • Suitable for sensor and actuator connections.
  • Ideal for signal and power distribution in automation systems.

1863217 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1863217 have?

8 positions.

What is the pitch of this terminal block plug?

3.5mm (0.138 inches).

What is the current rating of the 1863217?

8 A.

What is the voltage rating?

300 V.

What is the mounting type?

Free hanging (in-line).

What termination style does it use?

Screw - Rising Cage Clamp.

What wire gauge range is supported?

0.14 to 1.5 mm².
