| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

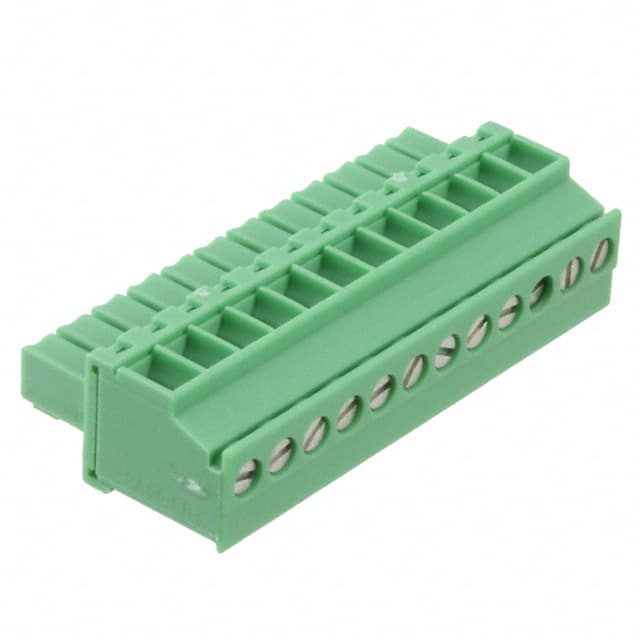

The Phoenix Contact 1862959 is a printed-circuit board connector plug from the MCVW 1.5 series. It has 12 positions arranged in a single level with a 3.5mm pitch. The termination style is screw with a rising cage clamp, accepting wire gauges from 0.14 to 1.5 mm². The plug features a 270° wire entry direction and is designed for free hanging (in-line) mounting.
Electrical ratings include a nominal current of 8A and a rated voltage of 300V (UL Use Group B). The contact mating finish is tin. The insulating material is polyamide (PA) with a flammability class of UL 94 V0. The plug is green in color and has a compact height of 12.5mm.
This plug is suitable for use in industrial control systems, building automation, and power distribution applications where reliable screw termination and a compact footprint are required. The generous wiring space and individual position keying (by removing the keying tab) add flexibility for design and maintenance.
The 1862959 has 12 positions.
The pitch is 3.5 mm.
The nominal current is 8 A.
The rated voltage is 300 V (UL Use Group B).
It uses free hanging (in-line) mounting.
It uses screw connection with a rising cage clamp.
It accepts wire gauges from 0.14 to 1.5 mm².
