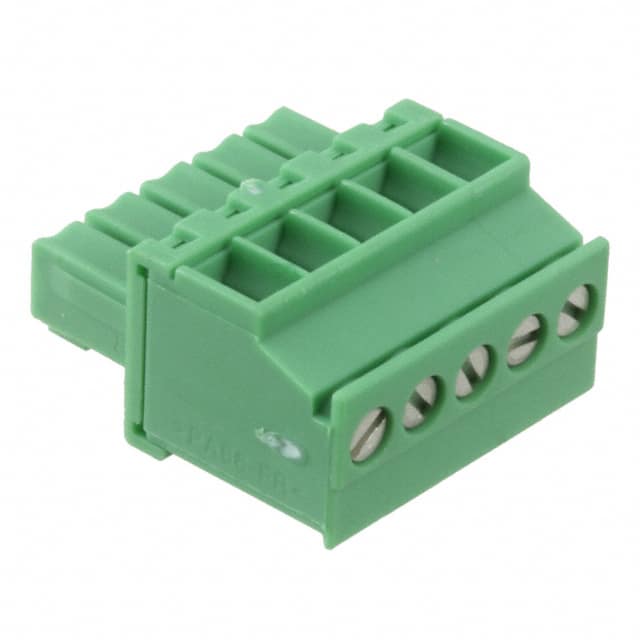

1862881 Phoenix Contact 1862881 terminal block plug with 5 positions, 3.5mm pitch, 8A current rating, and 300V voltage rating.
Mfr Part #:

1862881

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1862881 terminal block plug with 5 positions, 3.5mm pitch, 8A current rating, and 300V voltage rating.
✓ Total Stock: 34 pcs

1862881 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
34 pcs
On Request
34 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1862881 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Height
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1862881 Description

Short technical summary and product information.

The Phoenix Contact 1862881 is a 5-position plug terminal block from the MCVW series. It features a 3.5mm pitch and uses a screw connection with rising cage clamp termination for secure wire termination. The plug accepts solid or stranded conductors from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG) with a 7 mm stripping length. Rated at 8A and 300V (UL Use Group B), it is suitable for a range of industrial and commercial interconnection applications. The insulating material is PA with UL 94 V0 flammability rating. The plug is free hanging (in-line) and accepts wire entry at 270°. Contact mating finish is tin.

1862881 Quick Information

Product Type: Terminal Block Plug
Series: MCVW 1,5/..-ST
Canonical Name: Phoenix Contact MCVW 1.5/5-ST-3.5 5-Position 3.5mm Pitch Plug
Subcategory: Screw Connection Terminal Block Plug

1862881 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1862881 Features

  • 5 positions at 3.5mm pitch.
  • Screw connection with rising cage clamp.
  • Rated for 8A nominal current.
  • Accepts 28 to 16 AWG wire.
  • UL 94 V0 flammability rated PA insulator.

1862881 Applications

  • Used in printed circuit board connectors.
  • Suitable for plug-in terminal block applications.
  • Ideal for industrial control wiring.
  • Works with 3.5mm pitch header systems.

1862881 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1862881 have?

5 positions.

What is the pitch of the 1862881?

3.5 mm.

What is the current rating of the 1862881?

8 A nominal current.

What is the voltage rating of the 1862881?

Rated voltage (III/2) 160 V, (II/2) 320 V, UL Use Group B 300 V.

What wire sizes are accepted?

Solid or stranded 0.14 to 1.5 mm² (28 AWG to 16 AWG).

What is the mounting type?

Free hanging (in-line), 270° wire entry.

What is the flammability rating of the insulator?

UL 94 V0.
