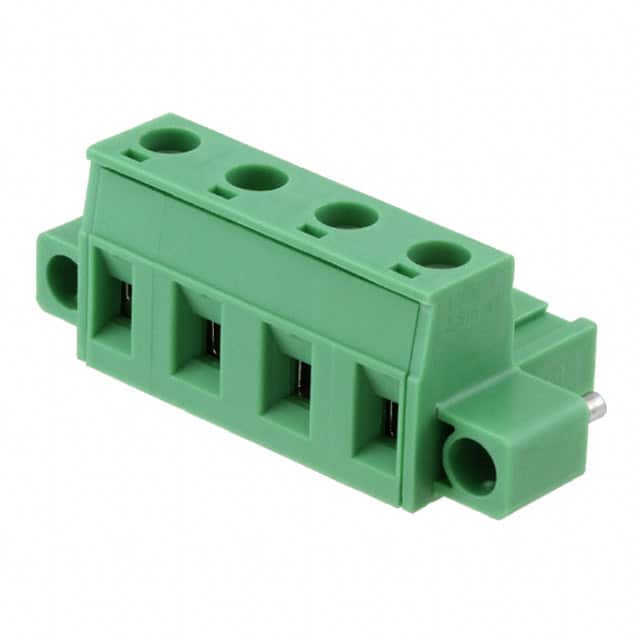

1858785 This is a 4-position terminal block plug with female sockets, 7.62mm pitch, and screw termination. Rated for 12A and 630V (III/2).
Mfr Part #:

1858785

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a 4-position terminal block plug with female sockets, 7.62mm pitch, and screw termination. Rated for 12A and 630V (III/2).
✓ Total Stock: 42 pcs

1858785 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1858785 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1858785 Description

Short technical summary and product information.

The Phoenix Contact 1858785 is a 4-position plug component from the GMSTB 2.5 series. It features female sockets with a pitch of 7.62mm and a free hanging (in-line) mounting style. The screw connection with rising cage clamp ensures reliable and easy wire termination.



Electrically, it is rated for a nominal current of 12A and rated voltage (III/2) of 630V, with a rated surge voltage of 6kV. UL ratings are also available: 250V/12A for Group B and 300V/10A for Group D. The nominal voltage is 400V.



Mechanically, it accepts solid and stranded conductors from 0.2 to 2.5 mm² (24-12 AWG) with a stripping length of 7mm. The M3 screw requires a tightening torque of 0.5-0.6 Nm. The insulating material is PA (polyamide) with UL94 V0 flammability class. The plug includes a mating flange for secure connection.

1858785 Quick Information

Product Type: Terminal Block Plug
Series: GMSTB 2.5/..-STF
Canonical Name: Phoenix Contact GMSTB 2.5/4-STF-7.62 Plug, Female Sockets, 4 Position, 7.62mm Pitch, Screw Connection
Subcategory: Headers, Plugs and Sockets

1858785 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1858785 Features

  • 4-position plug with female sockets.
  • 7.62mm pitch for high density.
  • Screw connection with rising cage clamp.
  • Rated for 12A and 630V (III/2).
  • UL94 V0 flammability class.

1858785 Applications

  • Ideal for 630V industrial control applications.
  • Used in power distribution systems.
  • Suitable for PCB connection with parallel wire entry.

1858785 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1858785 have?

4 positions.

What is the pitch of the 1858785?

7.62mm (0.300 inches).

What is the current rating of the 1858785?

Nominal current is 12A (UL: 12A Group B, 10A Group D).

What is the voltage rating of the 1858785?

Rated voltage (III/2) is 630V, (II/2) is 1000V, UL ratings: 250V Group B, 300V Group D.

What is the mounting type of the 1858785?

Free hanging (in-line) mounting.

What wire sizes are compatible with the 1858785?

Solid and stranded conductors from 0.2 to 2.5 mm² (24-12 AWG).

What is the termination style of the 1858785?

Screw connection with rising cage clamp.
