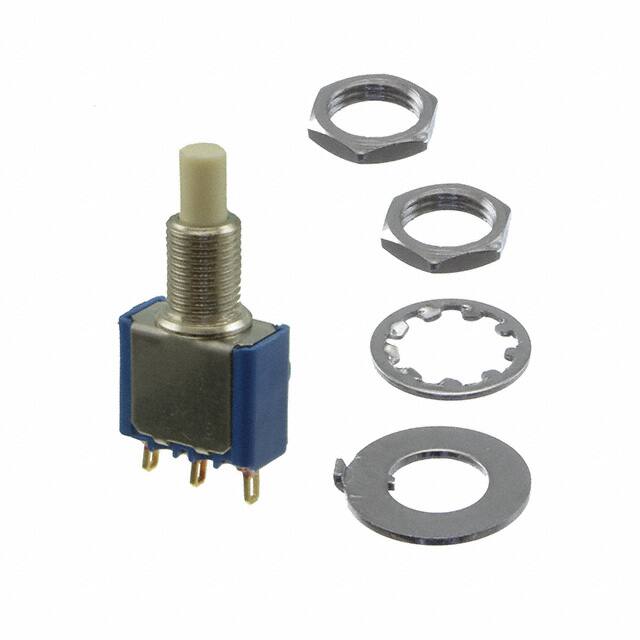

18535CD The APEM Inc. 18535CD is a pushbutton switch featuring a Single Pole Double Throw (SPDT) circuit and a tactile feedback mechanism. It is rated for 30V and 100mA.
Mfr Part #:

18535CD

Available from 2 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 18535CD is a pushbutton switch featuring a Single Pole Double Throw (SPDT) circuit and a tactile feedback mechanism. It is rated for 30V and 100mA.
✓ Total Stock: 25 pcs
$ Price Range: $0.75

18535CD Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

18535CD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Marking
Actuator Type
Automotive Grade
Circuit
Current Rating (Amps)
Features
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

18535CD Description

Short technical summary and product information.

This APEM Inc. 18535CD is a standard pushbutton switch designed for panel mounting with rear termination via solder lugs. It features a tactile feedback mechanism and a round plunger actuator without marking.



The switch operates on a Single Pole Double Throw (SPDT) circuit and is rated for a maximum voltage of 30V and a current of 100mA (DC). The operating temperature range is from -30°C to 65°C. The panel cutout required is circular with a 6.50mm diameter.



Compliance includes RoHS3 status. The part is classified under Moisture Sensitivity Level (MSL) 1 with unlimited shelf life. REACH status is unaffected.

18535CD Quick Information

Product Type: Pushbutton Switch
Canonical Name: APEM Inc. 18535CD Pushbutton Switch
Subcategory: Pushbutton Switch

18535CD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

18535CD Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

18535CD Features

  • SPDT pushbutton switch with tactile feedback.
  • Rated for 30V DC and 100mA current.
  • Panel mount with solder lug termination.
  • Operates from -30°C to 65°C.
  • Standard plunger actuator, no marking.

18535CD Applications

  • Suitable for general purpose switching.
  • Ideal for control panel interfaces.
  • Used in electronic equipment assemblies.
  • Requires 6.50mm panel cutout.

18535CD FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the APEM Inc. 18535CD pushbutton switch?

The voltage rating is 30 V.

What is the current rating for the 18535CD switch?

The current rating is 100mA (DC).

What type of circuit does the 18535CD switch use?

It uses an SPDT (Single Pole Double Throw) circuit.

What is the operating temperature range for this switch?

The operating temperature range is -30°C to 65°C.

How is the APEM Inc. 18535CD switch mounted?

It is a panel mount switch with rear termination.

What is the termination style of the 18535CD pushbutton switch?

The termination style is solder lug.
