| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

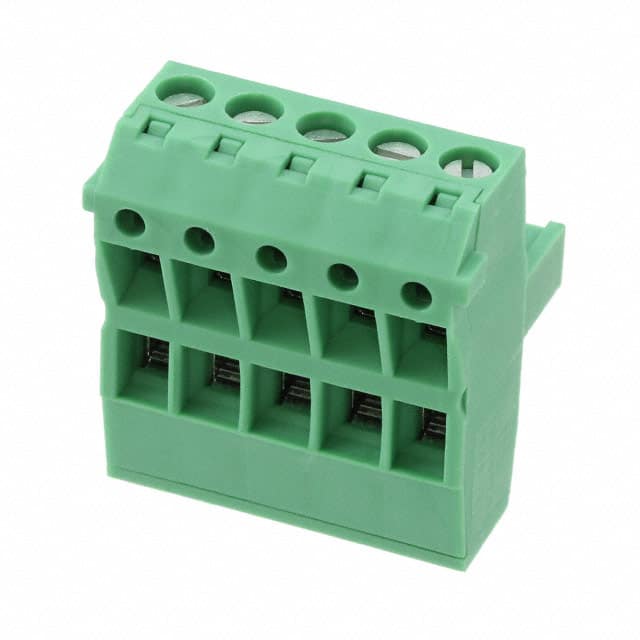

The 1853049 is a 5-position terminal block plug with female sockets, manufactured by Phoenix Contact. It features a 5.08mm (0.200") pitch with a 180° wire entry angle, making it suitable for compact wiring layouts. The plug is rated for 15A and 300V, accommodating wire gauges from 0.2 to 2.5mm².
Termination is via a screw rising cage clamp, providing a secure and reliable connection for solid or stranded wires. The free hanging (in-line) mounting type offers flexibility in installation without requiring a fixed panel mount. Retention latches on the non-wire side ensure mated connections stay secure.
This plug is designed for use in terminal block systems, commonly applied in industrial control panels, power distribution, and junction boxes. The green color and tin contact mating finish are standard for this series. With a 5.08mm pitch, it balances density and voltage clearance for 300V applications.
The 1853049 plug has 5 positions (with 5 mate positions and 10 input positions across 2 levels).
The pitch is 5.08mm (0.200 inches).
The current rating is 15A.
The voltage rating is 300V.
The mounting type is free hanging (in-line).
It uses screw rising cage clamp termination.
The wire gauge range is 0.2 to 2.5mm².
