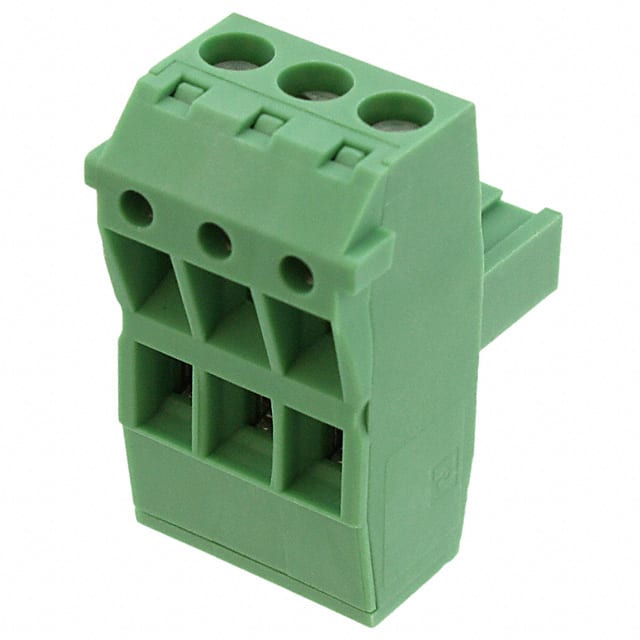

1853023 Phoenix Contact TMSTBP 2,5/ 3-ST-5,08 plug component with 3 positions, 5.08mm pitch, and screw connection. Rated for 12A nominal current and 320V (III/2).
Mfr Part #:

1853023

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact TMSTBP 2,5/ 3-ST-5,08 plug component with 3 positions, 5.08mm pitch, and screw connection. Rated for 12A nominal current and 320V (III/2).
✓ Total Stock: 22 pcs

1853023 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1853023 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1853023 Description

Short technical summary and product information.

The Phoenix Contact 1853023 is a 3-position terminal block plug from the TMSTBP 2,5/..-ST series. It uses a screw connection with rising cage clamp termination and has a pitch of 5.08mm. The green insulating body is made from PA material with a UL94 V0 flammability rating.



Electrical ratings include a nominal current of 12A and a rated voltage of 320V for overvoltage category III/2, and 630V for category II/2. The plug accepts solid and stranded conductors from 0.2mm² to 2.5mm² (AWG 24-12) with a stripping length of 10mm. It features retention latches on the non-wire side for secure mating.



The plug is free hanging (in-line) and is typically used for looping conductors between modules. Contact mating finish is tin.

1853023 Quick Information

Product Type: Terminal Block Plug
Series: TMSTBP 2,5/..-ST
Canonical Name: Printed-circuit board connector - TMSTBP 2,5/ 3-ST-5,08 - 1853023
Subcategory: Headers, Plugs and Sockets

1853023 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1853023 Features

  • 3 positions with 5.08mm pitch.
  • Screw connection with rising cage clamp.
  • Rated for 12A nominal current.
  • Rated voltage up to 630V (II/2).
  • Accepts conductors 0.2-2.5mm².

1853023 Applications

  • For looping conductors between modules.
  • Industrial control cabinet wiring.
  • Power distribution in building automation.
  • Suitable for DeviceNet-compliant systems.

1853023 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the pitch of the Phoenix Contact 1853023?

The pitch is 5.08mm.

What is the current rating of this terminal block plug?

The nominal current is 12A; the UL/CUL rating is 15A for use group B and D.

What voltage is the 1853023 rated for?

Rated voltage (III/2) is 320V, (II/2) is 630V. UL/CUL nominal voltage is 300V.

What mounting style does this plug use?

Free hanging (in-line) mounting.
