| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
383 pcs
|
383 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

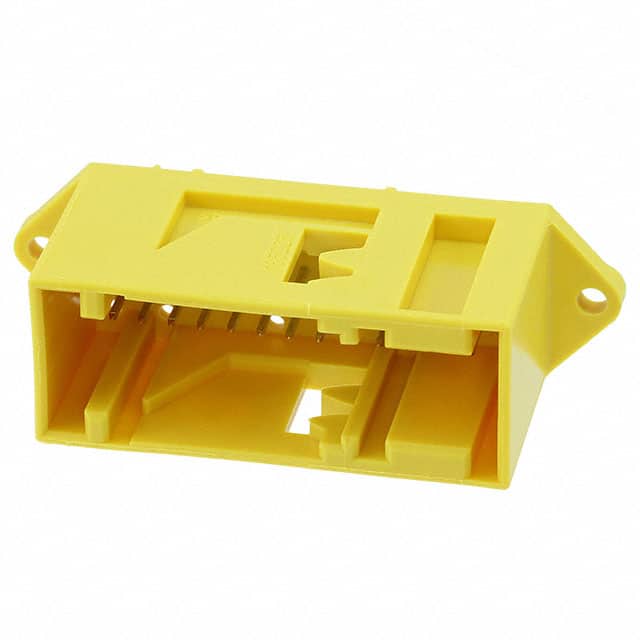

The TE Connectivity 185226-1 is a 26-position, 2-row shrouded header (male pin) connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, with all 26 positions loaded. The header is fully shrouded with a 4-wall design and includes a friction lock fastening type for secure mating. Contacts are square pins with a contact length of 6.70mm and tin finish. The insulation is made of glass-filled polybutylene terephthalate (PBT) in yellow, with an insulation height of 20.90mm. The component is through hole mount and terminated via solder. Operating temperature range is -40°C to 85°C. Additional features include a board guide and mounting flange for reliable PCB placement.
26 positions in 2 rows, all loaded.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole with solder termination.
-40°C to 85°C.
Tin finish on square pins.
Yes, fully shrouded with a 4-wall design and friction lock.
