| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

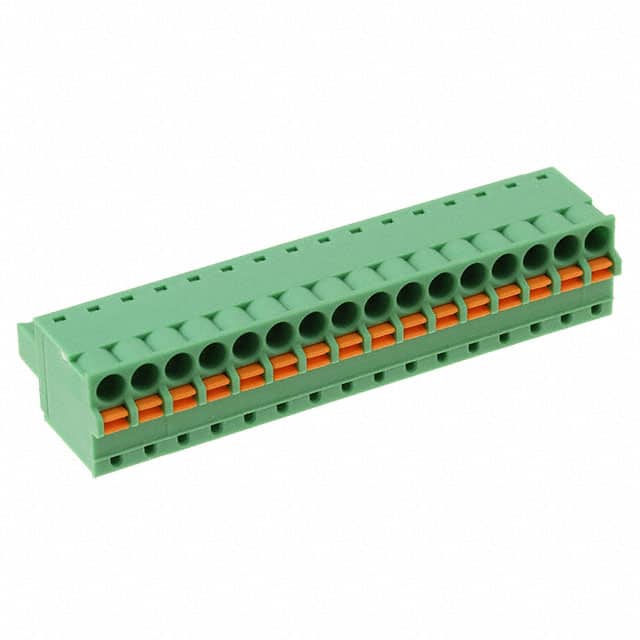

The Phoenix Contact 1851180 is a 16-position terminal block plug designed for reliable wire-to-board connections in industrial control and automation systems. It uses a screwless leg spring, push-in spring termination style that allows fast and tool-free wiring of solid or ferruled conductors.
This plug accepts wire sizes from 0.14 to 1.5 mm² and is rated for 8 A at 300 V. The 3.81 mm pitch provides a compact footprint while maintaining adequate spacing for signal-level applications. The plug features a 180° wire entry direction and is housed in a green insulator.
The free hanging (in-line) mounting type makes it suitable for applications where the plug is not panel-mounted but rather connects directly to a mating header. Contact mating finish is tin, ensuring good conductivity and corrosion resistance.
The 1851180 has 16 positions.
The pitch is 3.81 mm (0.150 inches).
It is rated for 8 A at 300 V.
It uses a screwless leg spring, push-in spring termination.
It accepts wire sizes from 0.14 to 1.5 mm².
It is free hanging (in-line) mounting.
