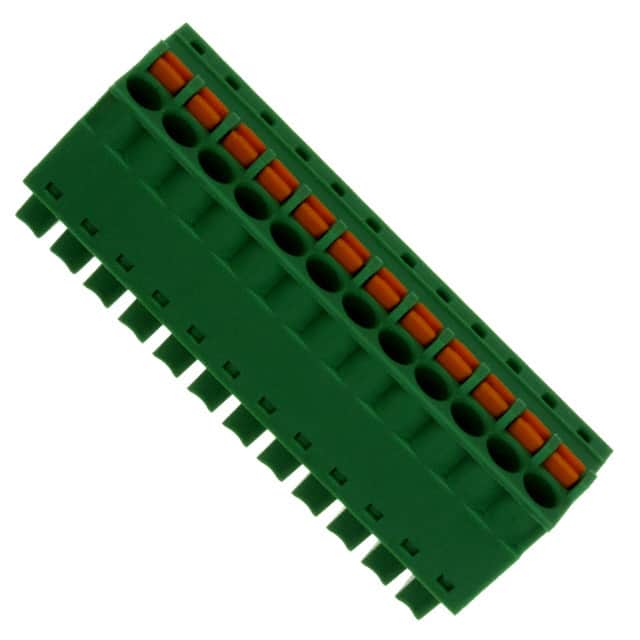

1851148 Phoenix Contact 1851148 is a 12-position terminal block plug with 3.81mm pitch, screwless push-in spring termination, rated 300V/8A, free hanging mounting.
Mfr Part #:

1851148

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1851148 is a 12-position terminal block plug with 3.81mm pitch, screwless push-in spring termination, rated 300V/8A, free hanging mounting.
✓ Total Stock: 33 pcs

1851148 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1851148 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1851148 Description

Short technical summary and product information.

The Phoenix Contact 1851148 is a 12-position terminal block plug designed for reliable wire-to-board connections. It features a 3.81mm pitch and a screwless leg spring, push-in spring termination style for fast and tool-free wiring. The plug accepts wire gauges from 0.14 to 1.5mm² and is rated for 300V and 8A. The female socket contacts have a tin mating finish. The housing is green and the plug wire entry is 180° (straight). This component is intended for free hanging (in-line) mounting, making it suitable for applications where a direct plug connection is needed without a fixed panel mount.

1851148 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1851148 Terminal Block Plug, 12 Position, 3.81mm Pitch, Screwless Push-In Spring, Free Hanging
Subcategory: Headers, Plugs and Sockets

1851148 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1851148 Features

  • 12 positions with 3.81mm pitch.
  • Screwless push-in spring termination.
  • Rated 300V and 8A.
  • Accepts 0.14-1.5mm² wire gauge.
  • Free hanging (in-line) mounting.

1851148 Applications

  • Ideal for industrial control panel wiring.
  • Used in sensor and actuator connections.
  • Suitable for building automation systems.
  • Applicable in power distribution blocks.

1851148 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1851148 have?

It has 12 positions.

What is the pitch of the 1851148 terminal block plug?

The pitch is 3.81mm (0.150 inches).

What is the voltage and current rating of the 1851148?

It is rated for 300V and 8A.

What type of termination does the 1851148 use?

It uses screwless leg spring, push-in spring termination.

What is the mounting type for the 1851148?

Free hanging (in-line) mounting.
