| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Insulation Material | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

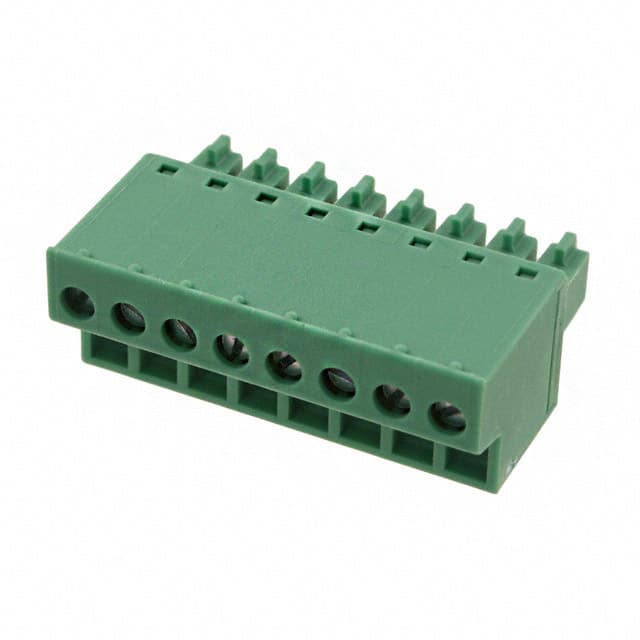

The Phoenix Contact 1850725 is an 8-position screw terminal block plug from the FRONT-MC series, featuring a 3.81mm pitch and free-hanging (in-line) mounting. It accepts wire gauges from 28 to 16 AWG (0.14-1.5mm²) and uses a screw-pressure clip termination with an M2 thread (tightening torque 0.22-0.25Nm). The plug is rated for 8A nominal current and 160V (III/2) or 320V (II/2) with a 2.5kV rated surge voltage. The housing is made of green polyamide (PA) with a UL94 V0 flammability rating and tin-plated contact mating surfaces. This plug is designed for use with matching headers and offers a 180° wire entry. The datasheet is sourced from Phoenix Contact.
This plug has 8 positions.
The pitch is 3.81mm.
The nominal current rating is 8A.
Rated voltage is 160V for overvoltage category III/2 and 320V for category II/2.
It is designed for free hanging (in-line) mounting.
