1847796 Phoenix Contact 1847796 is a 16-position, 2-level shrouded header with 3.81mm pitch. It features through hole mounting, vertical orientation, and tin contact finish.
Mfr Part #:

1847796

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1847796 is a 16-position, 2-level shrouded header with 3.81mm pitch. It features through hole mounting, vertical orientation, and tin contact finish.
✓ Total Stock: 42 pcs

1847796 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1847796 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1847796 Description

Short technical summary and product information.

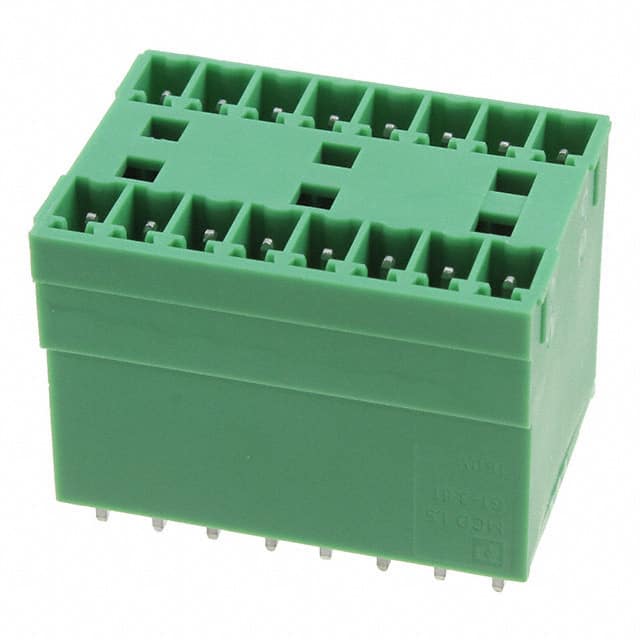

The Phoenix Contact 1847796 is a 16-position, double-level shrouded header designed for printed circuit board applications. It features 8 positions per level with a 3.81mm pitch, allowing for compact and efficient wiring. The header is through hole mounted with a vertical orientation, providing a secure mechanical connection. Rated at 300V and 8A, it is suitable for signal and power distribution in industrial control systems. The green housing is made from insulating material, and the contacts have a tin mating finish for reliable conductivity. The shrouded design protects the male pins and ensures proper polarization during mating.

1847796 Quick Information

Product Type: Terminal Block Header, Male Pins, Shrouded
Canonical Name: Header, Male Pins, Shrouded (4 Side), 16 Positions, 2 Levels, 3.81mm Pitch, Through Hole, Vertical, Green
Subcategory: Double-Level Header

1847796 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1847796 Features

  • 16 positions in 2 levels.
  • 3.81mm pitch for compact design.
  • Through hole mounting for reliability.
  • Rated 300V and 8A.
  • Green shrouded header with tin contacts.

1847796 Applications

  • Used in industrial control panels.
  • Suitable for PCB signal distribution.
  • Ideal for double-level wiring applications.
  • Common in automation systems.

1847796 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

16 positions arranged in 2 levels with 8 positions per level.

What is the pitch of this header?

3.81 mm (0.150 inches).

What is the current rating?

8 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What is the contact finish?

Tin.

What is the header orientation?

Vertical.
