The FRIWO 1847618 is a 12W switchmode medical power supply designed for critical applications requiring high reliability and patient safety. It operates with a universal input voltage range of 90-264 VAC and features an interchangeable adapter system.
Key characteristics include high efficiency up to 85.5%, low no-load power consumption below 90mW, and an ultra-low leakage current of 10µA, ensuring compliance with stringent medical standards like IEC 60601-1.
The power supply operates within a wide temperature range of 0-45°C without derating. It also meets DoE efficiency Level VI and CoC Version 5 requirements. The double housing safety system and IP42 protection for the interchangeable adapter system enhance its suitability for sterile environments.
Available with various output voltages from 5V to 48V, the FRIWO 1847618 is a versatile solution for medical device manufacturers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FRIWO 1847618 power supply is available with multiple output voltages, including 5V, 5.9V, 7.5V, 9V, 12V, 15V, 18V, 24V, and 48V.
The maximum output power for the FRIWO 1847618 is 12.1W.
The efficiency of the FRIWO 1847618 power supply is up to 85.5% typical.
The leakage current for the FRIWO 1847618 is a maximum of 10µA.
The FRIWO 1847618 operates within a temperature range of 0°C to 45°C.
Yes, all FRIWO medical products, including the FOX12-XM series which this power supply belongs to, conform to IEC 60601-1.

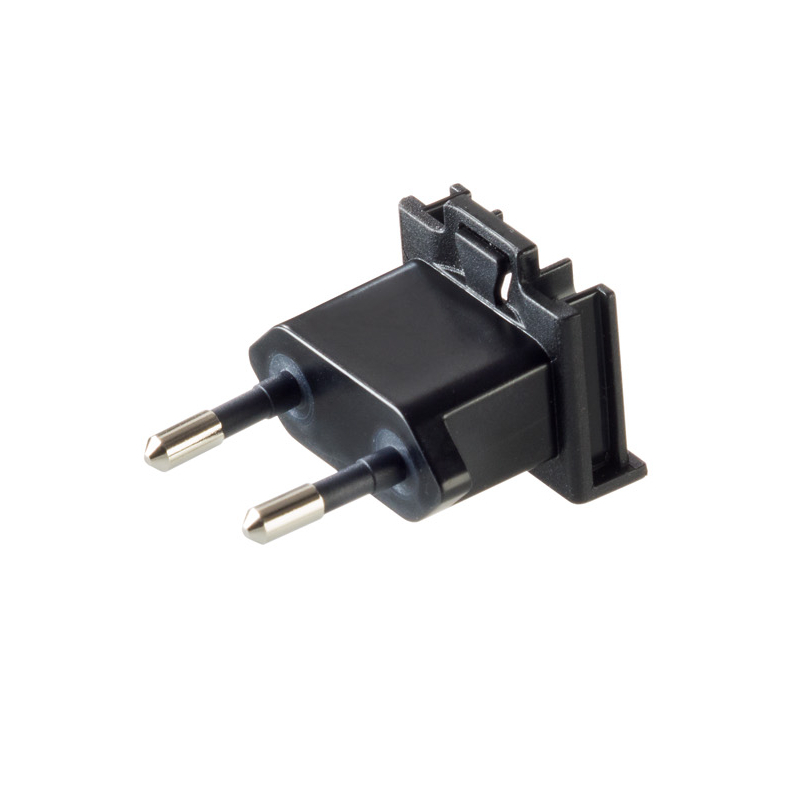

The interchangeable adapter system for the FRIWO FOX series has an IP42 protection rating.
