| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75,000 pcs
|
75000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

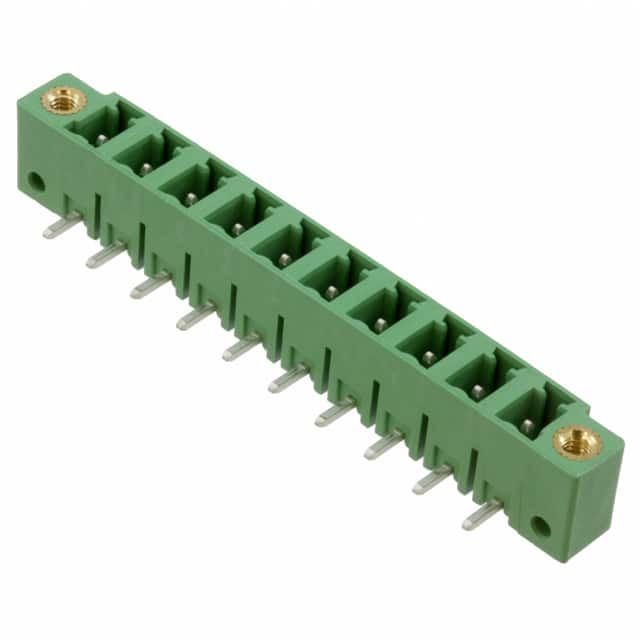

The Phoenix Contact 1847547 is a terminal block header designed for use in industrial control systems. It features 10 positions with a single level and a pitch of 5.08mm (0.200 inches). The header is shrouded on all four sides, providing protection and proper alignment with mating connectors. The right angle orientation allows for space-saving connections on PCBs. The header is through hole mounted with solder termination, ensuring reliable mechanical and electrical connections. The contact mating finish is tin, suitable for many applications. The green color is standard for Phoenix Contact terminal blocks. The header includes a mating and mounting flange for secure attachment. Electrical ratings are 300V and 8A. The component is RoHS3 compliant and has an MSL of 1 (unlimited). This header is commonly used in PLCs, I/O modules, and other industrial equipment.
10 positions.
5.08mm (0.200 inches).
8 A.
300 V.
Through hole.
Solder.
Right angle, 90°.
