| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

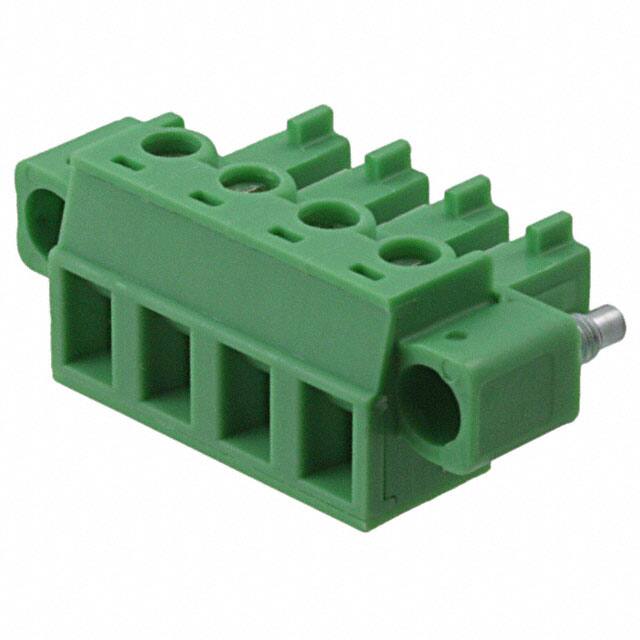

The Phoenix Contact 1847372 is a 4-position terminal block plug belonging to the female sockets type. It features a pitch of 5.08mm (0.200 inches) and is designed for free hanging (in-line) mounting. The termination method is screw with rising cage clamp, ensuring secure wire connections. The plug accepts wire gauges from 0.14 to 1.5 mm² and has a wire entry angle of 180°.
This plug is rated for 300V and 8A, making it suitable for industrial control and power distribution applications. The contact mating finish is tin, providing reliable conductivity. The housing is green in color and includes a mating flange for secure locking with the header. The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
Designed for use in conjunction with compatible headers, this plug is ideal for modular terminal block systems. The free hanging mounting allows for flexible cable assembly. The screw connection provides a robust and reusable termination method.
It has 4 positions.
The pitch is 5.08mm (0.200 inches).
The current rating is 8A.
The voltage rating is 300V.
Free hanging (in-line).
Wire gauge range is 0.14 to 1.5 mm².
Screw - rising cage clamp.
