1847220 Phoenix Contact 1847220 is a 12-position terminal block plug with 3.5mm pitch, rated for 300V and 8A. It features a free hanging mounting type and screw rising cage clamp termination.
Mfr Part #:

1847220

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1847220 is a 12-position terminal block plug with 3.5mm pitch, rated for 300V and 8A. It features a free hanging mounting type and screw rising cage clamp termination.
✓ Total Stock: 2 pcs

1847220 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1847220 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Mating Finish
Current
Current Rating
Features
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1847220 Description

Short technical summary and product information.

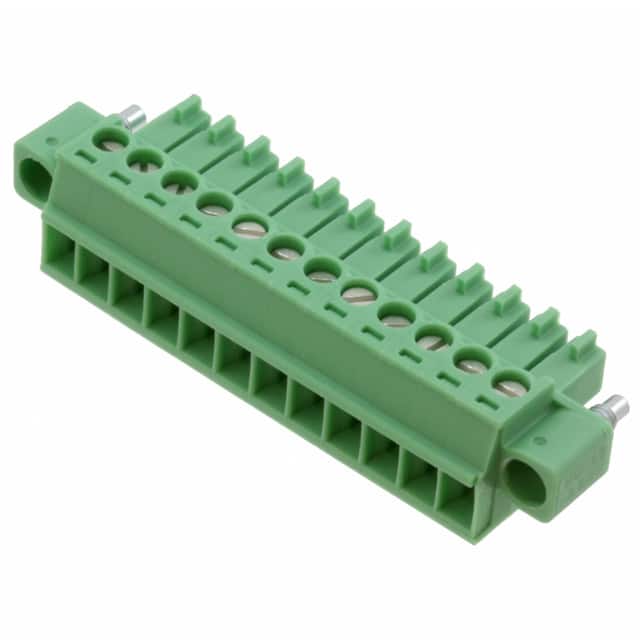

This is a 12-position plug with female sockets from Phoenix Contact, part of their terminal block series. It has a pitch of 3.50mm and is designed for free hanging (in-line) mounting.



Electrical ratings include 300V voltage and 8A current. Wire gauge range is 0.14-1.5mm². Termination is via screw rising cage clamp, ensuring secure wire connections.



The plug features a mating flange for secure connection to headers. Contact finish is tin. Color is green. Wire entry angle is 180°.



This component is suitable for industrial control and automation applications requiring reliable wire-to-board connections. It is RoHS3 compliant and has MSL 1.

1847220 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1847220 Terminal Block Plug, 12 Position, 3.5mm Pitch, Free Hanging
Subcategory: Terminal Block Plug

1847220 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1847220 Features

  • 12 positions with 3.50mm pitch.
  • Rated for 300V and 8A.
  • Screw rising cage clamp termination.
  • Free hanging (in-line) mounting.
  • Mating flange for secure connection.

1847220 Applications

  • Used in industrial control panels.
  • Ideal for sensor and actuator wiring.
  • Suitable for building automation systems.
  • Common in PLC and I/O modules.

1847220 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1847220 have?

12 positions.

What is the pitch of this terminal block plug?

3.50mm (0.138").

What is the voltage rating?

300V.

What is the current rating?

8A.

What mounting type does it use?

Free hanging (in-line).

What termination style is used?

Screw - rising cage clamp.

What wire gauge range is supported?

0.14-1.5mm².
