1847084 Phoenix Contact 1847084 is a 5-position plug with female sockets, 3.5mm pitch, rated 8A and 300V, featuring screw connection with rising cage clamp.
Mfr Part #:

1847084

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1847084 is a 5-position plug with female sockets, 3.5mm pitch, rated 8A and 300V, featuring screw connection with rising cage clamp.
✓ Total Stock: 1,420 pcs

1847084 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1,143 pcs
On Request
1143 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
277 pcs
On Request
277 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1847084 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Country of Origin
Current
Current Rating
Features
Halogen Free
Height
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge
Wire Gauge or Range
View Similar Products (0)

1847084 Description

Short technical summary and product information.

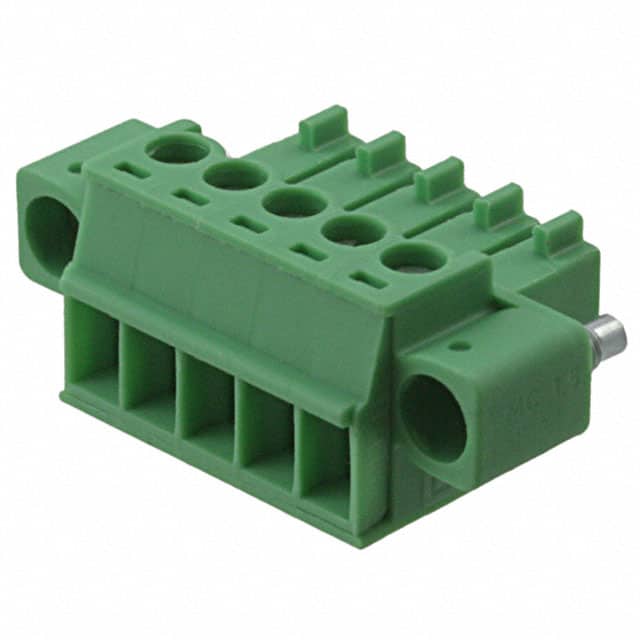

The Phoenix Contact 1847084 (MC 1,5/ 5-STF-3,5) is a 5-position plug component designed for printed-circuit board connectors. It features a 3.5mm pitch and uses a screw connection with a rising cage clamp termination style, accepting wire gauges from 28 to 16 AWG (0.14-1.5 mm²). The plug is rated for 8A nominal current and 300V (UL/CUL Use Group B/D), with a rated surge voltage of 2.5 kV. The insulating material is polyamide (PA) with a flammability class of UL 94 V0, and the contact mating finish is tin. The plug is free hanging (in-line) with a 180° wire entry angle and includes a mating flange feature. Dimensions include an 11.1 mm height and a 14 mm length (dimension a). The screw thread is M2 with a tightening torque of 0.22-0.25 Nm, and the stripping length is 7 mm. The country of origin is Germany.

1847084 Quick Information

Product Type: Terminal Block Plug
Series: MC 1,5/..-STF
Canonical Name: Phoenix Contact MC 1,5/ 5-STF-3,5 - 5-Position 3.5mm Pitch Plug, Female Sockets
Subcategory: Headers, Plugs and Sockets

1847084 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1847084 Features

  • 5 positions with 3.5mm pitch.
  • Screw connection with rising cage clamp.
  • Rated 8A current and 300V voltage.
  • Accepts 28-16 AWG wire (0.14-1.5 mm²).
  • Green polyamide housing, UL 94 V0 rated.

1847084 Applications

  • Ideal for PCB connector wiring applications.
  • Used in industrial control and automation systems.
  • Suitable for power distribution terminal blocks.
  • Common in building and infrastructure wiring.

1847084 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1847084 have?

It has 5 positions.

What is the pitch of this terminal block plug?

The pitch is 3.5 mm (0.138 inches).

What is the current rating of the 1847084?

The nominal current rating is 8 A, with a maximum load current of 8 A when using a 1.5 mm² conductor.

What is the voltage rating?

The voltage rating is 300 V for UL/CUL Use Group B and D. The rated voltage (III/2) is 160 V and (II/2) is 320 V.

What mounting type does this plug use?

It is free hanging (in-line) mounting.

What wire gauge is compatible?

It accepts 28-16 AWG wire, corresponding to 0.14-1.5 mm² solid or stranded conductors.

What is the termination style?

Screw connection with rising cage clamp.
