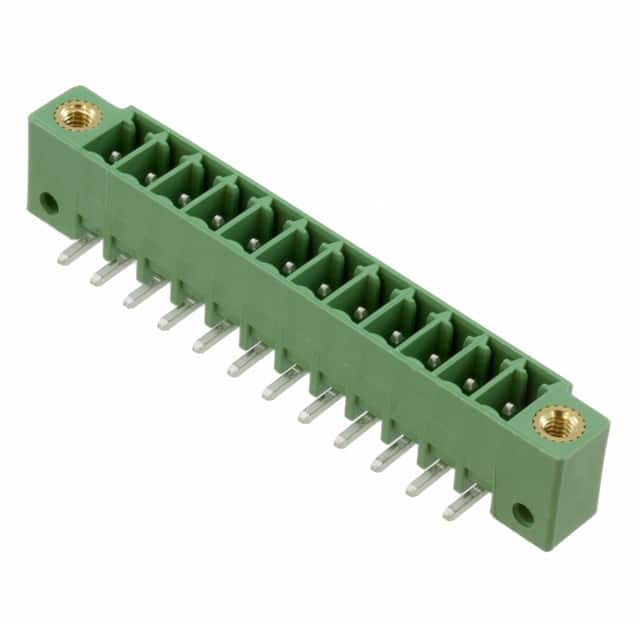

1843897 Phoenix Contact 1843897 is a 12-position, 3.5mm pitch, right angle, through hole header with shrouded male pins and tin-plated contacts.
Mfr Part #:

1843897

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1843897 is a 12-position, 3.5mm pitch, right angle, through hole header with shrouded male pins and tin-plated contacts.
✓ Total Stock: 5 pcs

1843897 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1843897 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Header Orientation
Height
Hole Diameter
Lead Spacing
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1843897 Description

Short technical summary and product information.

The Phoenix Contact 1843897 is a 12-position, single-level header from the MC 1.5/..-GF series. It features male pins arranged in a shrouded (4 side) configuration with a 3.5mm pitch, designed for through-hole soldering to a PCB. The header is oriented at a 90° right angle, allowing plug-in direction parallel to the PCB.



Electrical ratings include a nominal current of 8A and rated voltages of 160V (III/2 per EN-VDE) and 300V (UL/CUL Use Group B and D). The rated surge voltage is 2.5 kV. The insulating material is green PBT with a flammability rating of UL94 V0. Contact mating finish is tin.



Mechanical dimensions include a length of 9.2mm, height of 7.7mm, and pin dimensions of 0.8 x 0.8mm. The header includes a mating and mounting flange for secure connection. Packing unit is 1 piece with a minimum order quantity of 50.

1843897 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: MC 1,5/..-GF
Canonical Name: Phoenix Contact MC 1.5/12-GF-3.5 Header, Male Pins, Shrouded (4 Side), 12 Position, 3.5mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1843897 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1843897 Features

  • 12 positions with 3.5mm pitch.
  • Right angle orientation for parallel PCB plug-in.
  • Rated 8A nominal current and 300V UL.
  • Green PBT housing, UL94 V0 rated.
  • Tin-plated contacts with mating flange.

1843897 Applications

  • Ideal for PCB-to-wire connections in control systems.
  • Used in industrial automation and power distribution.
  • Suitable for signal and power terminal block interfaces.
  • Right angle design saves board space in compact enclosures.

1843897 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1843897 header have?

The header has 12 positions.

What is the pitch of the 1843897 header?

The pitch is 3.5 mm.

What is the current rating of the 1843897?

The nominal current is 8 A, and the maximum load current is also 8 A.

What is the voltage rating of the 1843897?

Rated voltage is 160 V (III/2 per EN-VDE), 250 V (II/2), and 300 V (UL/CUL Use Group B and D).

What is the mounting type for this header?

The mounting type is through hole, with solder termination.

What is the color and material of the housing?

The housing is green PBT with a flammability rating of UL94 V0.

What is the contact finish on the 1843897?

The contact mating finish is tin.
