1843839 Phoenix Contact 1843839 is a 6-position, 3.5 mm pitch, right angle, through-hole terminal block header with shrouded male pins. Rated at 8 A and 160 V (III/2).
Mfr Part #:

1843839

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1843839 is a 6-position, 3.5 mm pitch, right angle, through-hole terminal block header with shrouded male pins. Rated at 8 A and 160 V (III/2).
✓ Total Stock: 15 pcs

1843839 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1843839 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Header Orientation
Hole Diameter
Industrial Grade
Lead Spacing
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1843839 Description

Short technical summary and product information.

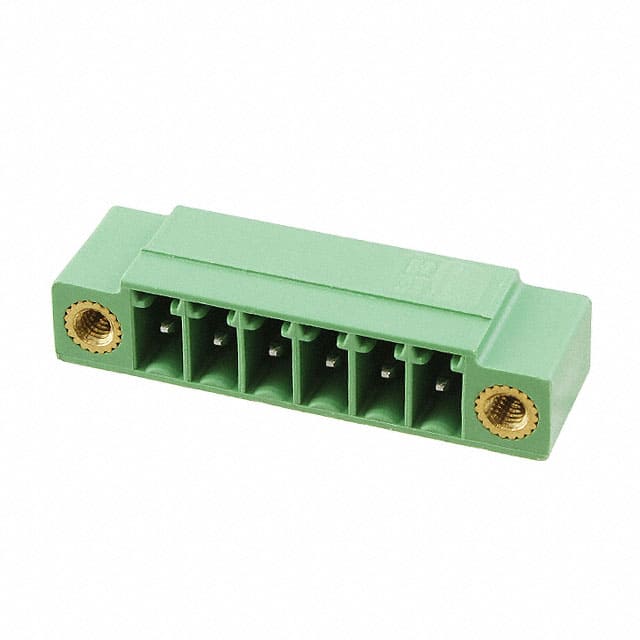

The Phoenix Contact 1843839 (MC 1,5/ 6-GF-3,5) is a 6-position terminal block header designed for PCB mounting. It features a 3.5 mm pitch, right angle (90°) header orientation, and through-hole solder termination. The header is shrouded on four sides and includes a mating and mounting flange for secure connection.



Rated electrical characteristics include a nominal current of 8 A and rated voltage of 160 V (III/2) or 250 V (II/2) per EN-VDE standards. UL/CUL ratings are 300 V / 8 A for Use Groups B and D. The insulating material is green PBT (flammability class V0) with insulating material group IIIa. Contact mating finish is tin, with pin dimensions of 0.8 x 0.8 mm and a hole diameter of 1.2 mm.



This header is suitable for applications requiring a low-profile, compact pin strip with a plug-in direction parallel to the PCB. Versions with engagement noses allow locking with plugs featuring self-locking flanges. Individual position keying is possible by inserting keying profiles. The product is recognized under UL, CSA, cUL, VDE, and IECEE CB Scheme certifications.

1843839 Quick Information

Product Type: Terminal Block Header
Series: GF
Canonical Name: Phoenix Contact MC 1,5/ 6-GF-3,5 Header, 6 Position, 3.5 mm Pitch, Right Angle, Through Hole
Subcategory: PCB Headers

1843839 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1843839 Features

  • 6 positions with 3.5 mm pitch.
  • Right angle through hole header.
  • Rated for 8 A and 160 V.
  • Shrouded on four sides with flange.
  • Green PBT insulator, UL 94 V0.

1843839 Applications

  • PCB wire-to-board terminal block connections.
  • Industrial control and automation systems.
  • Compact power distribution applications.
  • Locking plug interface with self-locking flanges.

1843839 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1843839 header have?

The header has 6 positions.

What is the pitch of the 1843839 terminal block header?

The pitch is 3.5 mm.

What is the current rating of the 1843839?

The nominal current rating is 8 A.

What is the voltage rating for the 1843839?

Rated voltage (III/2) is 160 V; UL Use Group B/D is 300 V.

What is the mounting type for this header?

The mounting type is through hole.

What certifications does the 1843839 hold?

It is UL, CSA, cUL, VDE, and IECEE CB Scheme recognized.
