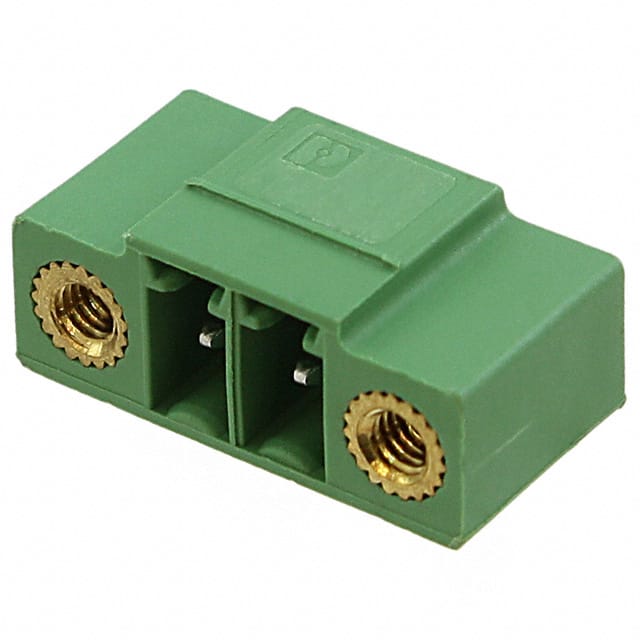

1843790 Phoenix Contact 1843790 is a 2-position, single-level terminal block header with a 3.5mm pitch, right angle orientation, and through hole mounting.
Mfr Part #:

1843790

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1843790 is a 2-position, single-level terminal block header with a 3.5mm pitch, right angle orientation, and through hole mounting.
✓ Total Stock: 83 pcs

1843790 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
83 pcs
On Request
83 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1843790 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1843790 Description

Short technical summary and product information.

The Phoenix Contact 1843790 is a shrouded (4 side) header with male pins, designed for use in terminal block interconnect systems. It features 2 positions arranged in a single level with a 3.5mm pitch, providing a compact footprint for space-constrained applications.



The header is oriented at 90 degrees (right angle) and is mounted via through hole solder termination. The contact mating finish is tin, ensuring reliable electrical connections. The housing is green and includes a mating and mounting flange for secure attachment to the mating connector.



Rated for 300V and 8A, this header is suitable for signal and low-power distribution in industrial control, building automation, and instrumentation equipment.

1843790 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1843790 - Terminal Block Header, 2 Position, 3.5mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Header

1843790 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1843790 Features

  • 2 positions with 3.5mm pitch spacing.
  • Right angle orientation for PCB mounting.
  • Through hole solder termination style.
  • Rated for 300V and 8A operation.
  • Includes mating and mounting flange.

1843790 Applications

  • Industrial control panel wiring connections.
  • Building automation system interconnects.
  • Instrumentation and sensor signal interfaces.

1843790 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1843790 header have?

It has 2 positions arranged in a single level.

What is the pitch of this terminal block header?

The pitch is 3.50mm (0.138 inches).

What is the voltage and current rating of the 1843790?

It is rated for 300V and 8A.

What mounting type does this header use?

It uses through hole mounting with solder termination.

What is the orientation of the header?

The header is oriented at 90 degrees (right angle).
