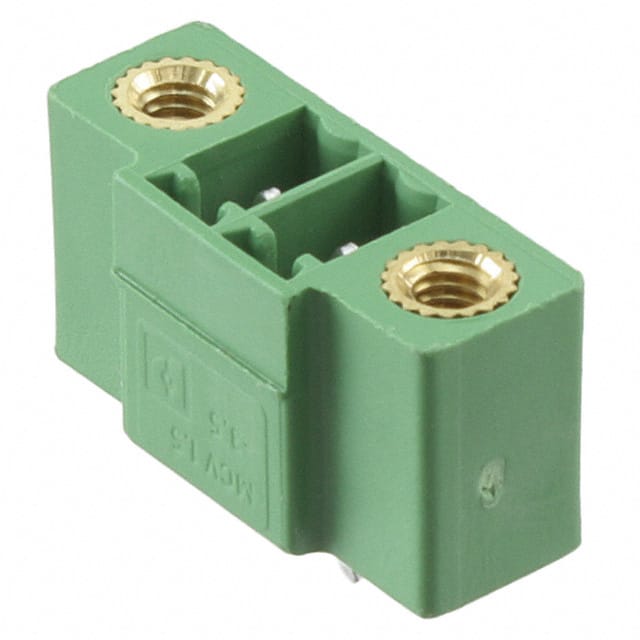

1843224 Phoenix Contact 1843224 is a 2-position, 3.5mm pitch vertical terminal block header with male pins and shrouded housing. Rated at 8A and 300V (UL), it features tin-plated contacts and through-hole solder termination.
Mfr Part #:

1843224

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1843224 is a 2-position, 3.5mm pitch vertical terminal block header with male pins and shrouded housing. Rated at 8A and 300V (UL), it features tin-plated contacts and through-hole solder termination.
✓ Total Stock: 100 pcs

1843224 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1843224 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Header Orientation
Hole Diameter
Industrial Grade
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1843224 Description

Short technical summary and product information.

The Phoenix Contact MCV 1,5/ 2-GF-3.5 base strip (part number 1843224) is a 2-position header designed for terminal block interconnects. It has a pitch of 3.5 mm and a vertical header orientation, making it suitable for compact PCB layouts. The component features a shrouded (4 side) housing in green PBT insulating material (UL 94 V0). Pin dimensions are 0.8 x 0.8 mm with a 1.2 mm recommended hole diameter for through-hole mounting (solder termination). The contact mating finish is tin. Electrical ratings include a nominal current of 8 A and a rated voltage (III/2) of 160 V (IEC) / 300 V (UL). The header also includes a mating and mounting flange for secure locking with compatible plugs. The packing unit is 1 and the minimum order quantity is 1.

1843224 Quick Information

Product Type: Terminal Block Header
Series: 1.5/..-GF
Canonical Name: Phoenix Contact 1843224 MCV 1.5/ 2-GF-3.5 Base Strip, Header, 2-position, 3.5 mm Pitch, Vertical, Through Hole, Solder Termination, Tin Contact
Subcategory: Headers, Male Pins, Shrouded (4 Side)

1843224 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1843224 Features

  • 2 positions with 3.5 mm pitch
  • Vertical header for through-hole mounting
  • Tin-plated contact mating surface
  • Shrouded housing with mounting flange
  • Rated 8A and 300V (UL group B)

1843224 Applications

  • PCB terminal block interconnects in control panels
  • Industrial automation and sensor wiring
  • Power distribution within equipment enclosures
  • Building automation and lighting systems

1843224 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1843224 header have?

It has 2 positions.

What is the pitch of this terminal block header?

The pitch is 3.5 mm.

What is the current rating and voltage rating of the 1843224?

The nominal current rating is 8 A. The rated voltage is 160 V (III/2) per IEC and 300 V per UL.

What mounting type does this header use?

It uses through hole mounting with solder termination.

Is the Phoenix Contact 1843224 RoHS compliant?

RoHS compliance is listed as unverified / low confidence. The datasheet does not contain a RoHS statement.
