1843101 Phoenix Contact 1843101 is a 10 position, 2 level, 3.81mm pitch through hole header with right angle orientation. Rated at 8 A and 300 V.
Mfr Part #:

1843101

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1843101 is a 10 position, 2 level, 3.81mm pitch through hole header with right angle orientation. Rated at 8 A and 300 V.
✓ Total Stock: 3 pcs

1843101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1843101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Width
View Similar Products (0)

1843101 Description

Short technical summary and product information.

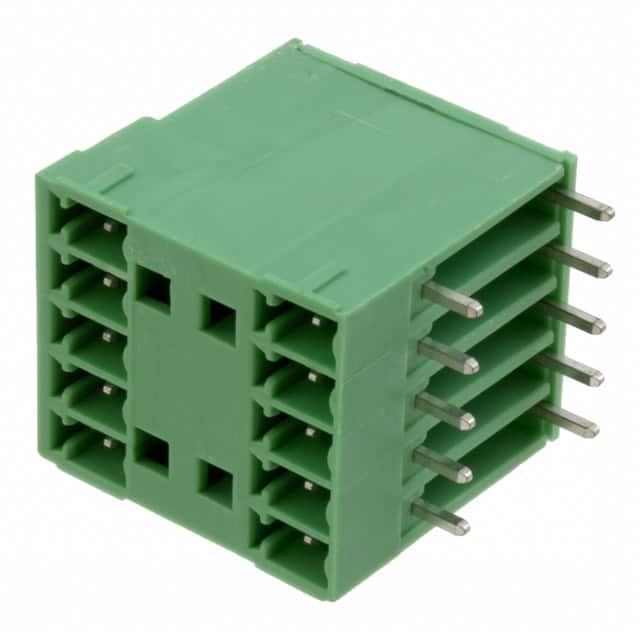

The Phoenix Contact 1843101 is a double-level pin strip header from the MCD 1,5/..-G1 series. It features 10 positions arranged in 2 levels with 5 positions per level, on a 3.81mm pitch. The header is through hole mounted with solder termination and has a right angle (90°) orientation.



Electrical ratings include a nominal current of 8 A and a voltage rating of 300 V. The insulating material is polyamide (PA) with a UL 94 V0 flammability rating. Contact mating finish is tin. The header is green in color.



Mechanical dimensions include a length of 21.9 mm, width of 20.44 mm, and height of 26.2 mm. Solder pin length is 3.5 mm with pin dimensions of 0.8 x 0.8 mm. The required PCB hole diameter is 1.2 mm. Weight per piece is 6.67 g.

1843101 Quick Information

Product Type: Header
Series: MCD 1,5/..-G1
Canonical Name: Phoenix Contact MCD 1,5/..-G1 Series 10 Position 3.81mm Pitch Through Hole Header
Subcategory: Terminal Block Header

1843101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1843101 Features

  • 10 positions in 2 levels.
  • 3.81mm pitch for compact design.
  • Through hole solder termination.
  • Right angle orientation for space saving.
  • Rated 8 A and 300 V.

1843101 Applications

  • PCB to wire connections in control systems.
  • Industrial automation and instrumentation.
  • Power distribution and signal routing.
  • Building automation and lighting controls.

1843101 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1843101 have?

The 1843101 has 10 positions arranged in 2 levels with 5 positions per level.

What is the pitch of the 1843101 header?

The pitch is 3.81 mm (0.150 inches).

What is the current rating of the 1843101?

The nominal current rating is 8 A.

What is the voltage rating of the 1843101?

The voltage rating is 300 V. Note that datasheet specifies 160 V for III/2 and 320 V for II/2.

What mounting type does the 1843101 use?

The 1843101 is a through hole mount header with solder termination.

What is the color of the 1843101 header?

The header is green.

What is the flammability rating of the 1843101?

The insulating material has a UL 94 V0 flammability rating.
