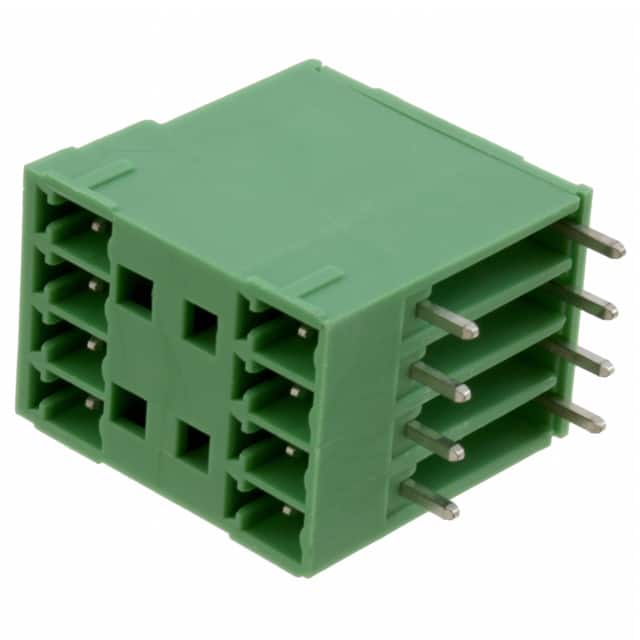

1843091 Phoenix Contact 1843091 is an 8-position, 2-level, 3.81mm pitch right angle header with through hole solder termination, rated 300V and 8A.
Mfr Part #:

1843091

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1843091 is an 8-position, 2-level, 3.81mm pitch right angle header with through hole solder termination, rated 300V and 8A.
✓ Total Stock: 68 pcs

1843091 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
67 pcs
On Request
67 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1843091 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1843091 Description

Short technical summary and product information.

The Phoenix Contact 1843091 is a 8-position, 2-level shrouded header with male pins, designed for 3.81mm pitch terminal block applications. It features a right angle (90°) orientation and through hole mounting with solder termination.



Rated for 300V and 8A, this header is suitable for signal and power distribution in industrial control systems. The contact mating finish is tin, and the housing is green. The header is shrouded on 4 sides, providing pin protection and keying for mating connectors.



With a 3.81mm pitch and 2 levels of 4 positions each, this component is ideal for space-constrained PCB layouts requiring a compact, reliable interconnection. The through hole mounting ensures a robust mechanical bond to the board.

1843091 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Canonical Name: Phoenix Contact 1843091 8-Position 3.81mm Right Angle Header
Subcategory: Headers, Plugs and Sockets

1843091 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1843091 Features

  • 8-position 2-level right angle header.
  • 3.81mm pitch for compact designs.
  • Rated 300V and 8A electrical.
  • Through hole solder termination.
  • Tin plated contacts, green housing.

1843091 Applications

  • Used in industrial terminal block systems.
  • Suitable for PCB signal distribution.
  • Ideal for space-constrained control panels.
  • Common in factory automation equipment.

1843091 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the 1843091?

300 V

What is the current rating?

8 A

How many positions does this header have?

8 positions arranged in 2 levels of 4 positions each.

What is the pitch of the 1843091?

3.81 mm (0.150 inches)

What is the mounting type?

Through hole with solder termination.
