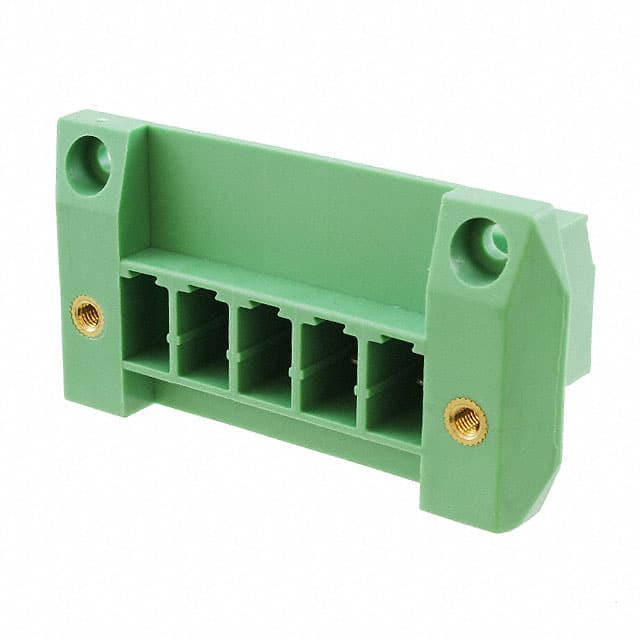

1840586 This Phoenix Contact 1840586 is a 5-position terminal block header with a 7.62 mm pitch. It features a screw connection, green color, and is designed for direct panel mounting.
Mfr Part #:

1840586

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact 1840586 is a 5-position terminal block header with a 7.62 mm pitch. It features a screw connection, green color, and is designed for direct panel mounting.
✓ Total Stock: 10 pcs

1840586 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1840586 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connection Method
Current
Current Rating
Features
Front Panel Wire Connection
Industrial Grade
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Panel Mount Type
Panel Thickness
Pitch
Positions Per Level
Rear Panel Wire Connection
SVHC Present
Tape & Reel
Termination Style
Voltage
Voltage Rating
Width
Wire Gauge
View Similar Products (0)

1840586 Description

Short technical summary and product information.

The Phoenix Contact 1840586 is a base strip (plug component) from the DFK-PC 4 series, designed for panel mount applications. It has 5 positions with a 7.62 mm pitch and uses a reliable screw connection method.



The part is rated for a nominal current of 20 A and a rated voltage of 630 V (III/2) or 1000 V (II/2), with a rated surge voltage of 6 kV. The insulating material is polyamide (PA) with a flammability class of UL94 V0.



Assembly is via direct mounting with a front flange screw mount. The connection uses an M3 screw thread with a tightening torque range of 0.5 to 0.6 Nm. It accepts solid or stranded conductors from 0.2 to 4 mm² (24 to 10 AWG).

1840586 Quick Information

Product Type: Terminal Block Header
Series: DFK-PC 4/..-GF
Canonical Name: Phoenix Contact DFK-PC 4/ 5-GF-7,62 Base Strip, 5 Position, 7.62 mm Pitch, Screw Connection, Green
Subcategory: Panel Mount

1840586 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1840586 Features

  • Five positions with 7.62 mm pitch.
  • Green polyamide housing, UL94 V0 rated.
  • Screw connection for solid/stranded wires.
  • Rated for 20 A and 630 V (III/2).
  • Panel mount with threaded mating lock.

1840586 Applications

  • Panel feed-through wiring in control cabinets.
  • Power distribution in industrial automation systems.
  • Connecting field devices to internal electronics.
  • Device-level wiring for machinery and drives.

1840586 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1840586 have?

5 positions.

What is the pitch of this terminal block?

7.62 mm.

What is the current rating?

The nominal current IN is 20 A.

What is the voltage rating?

The rated voltage is 630 V for category III/2 and 1000 V for category II/2.

What mounting type does this part use?

Screw mount - front flange (direct mounting).
