| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Industrial Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Current | |
| Rated Voltage | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

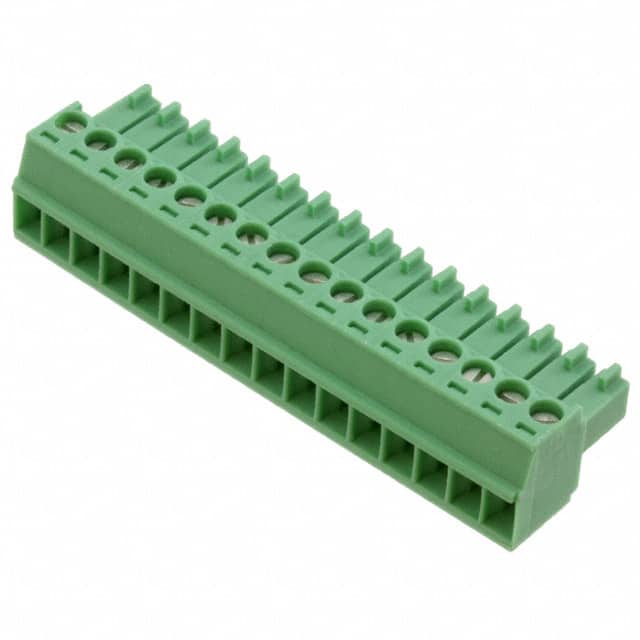

The Phoenix Contact 1840502 is a 16-position plug component from the MC 1,5/..-ST series. It features female sockets with a 3.5mm pitch and uses a screw connection with rising cage clamp termination. The plug is designed for free hanging (in-line) mounting and has a green insulating body made of PA material with flammability class V0.
Electrically, it is rated for 8A nominal current and 300V rated voltage (UL Use Group B). The rated voltage according to IEC (III/2) is 160V with a rated surge voltage of 2.5kV. The wire range accepts solid and stranded conductors from 0.14 to 1.5 mm² (28-16 AWG) with a stripping length of 7mm. The screw thread is M2 with a tightening torque of 0.22-0.25 Nm.
The plug is designed for use with matching headers and offers a low profile design. It is suitable for industrial control and automation applications where reliable screw termination is required. The contact mating finish is tin, and the insulating material group is I.
The product is packed in units of 1 with a minimum order quantity of 1500. It is RoHS3 compliant and REACH unaffected (unverified). The datasheet confirms UL 94 V0 flammability rating.
16 positions.
3.5 mm.
8 A.
300 V (UL Use Group B) and 160 V (IEC III/2).
Free hanging (in-line).
28-16 AWG (0.14-1.5 mm²).
0.22 Nm (min) to 0.25 Nm (max).
