| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

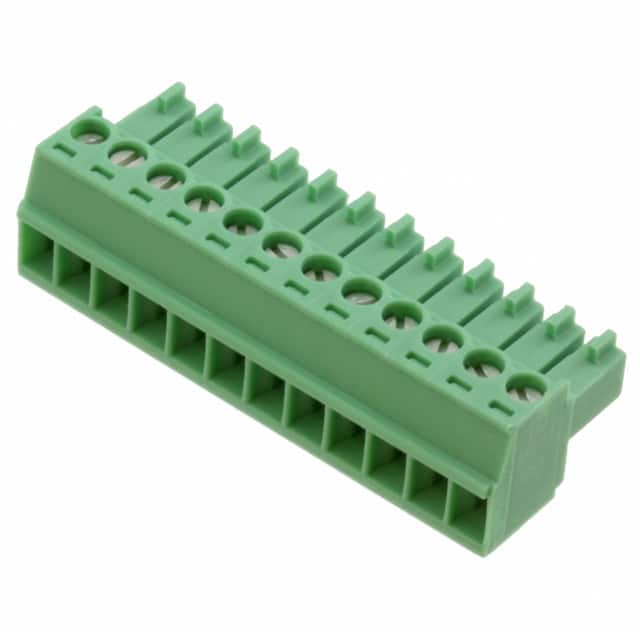

The Phoenix Contact 1840463 is a terminal block plug with female socket contacts, designed for use in headers, plugs and sockets interconnect applications. It features 12 positions arranged in a single level with a compact 3.50mm pitch, allowing for dense wiring in space-constrained designs. The plug is rated for 300V and 8A, accommodating wire sizes from 0.14 to 1.5mm².
Termination is via a screw - rising cage clamp mechanism, providing reliable and secure conductor retention. The plug is free hanging (in-line) with a 180° wire entry angle, simplifying field wiring. The housing is green, and the contact mating finish is tin.
This component is RoHS3 compliant (unverified), REACH unaffected (unverified), and has an MSL of 1 - Unlimited (unverified). Typical applications include industrial control panels, automation systems, and power distribution blocks where modular pluggable connections are required.
It has 12 positions.
The pitch is 3.50mm.
It is rated for 300V and 8A.
It uses screw - rising cage clamp termination.
It is free hanging (in-line) mounting.
The housing is green.
