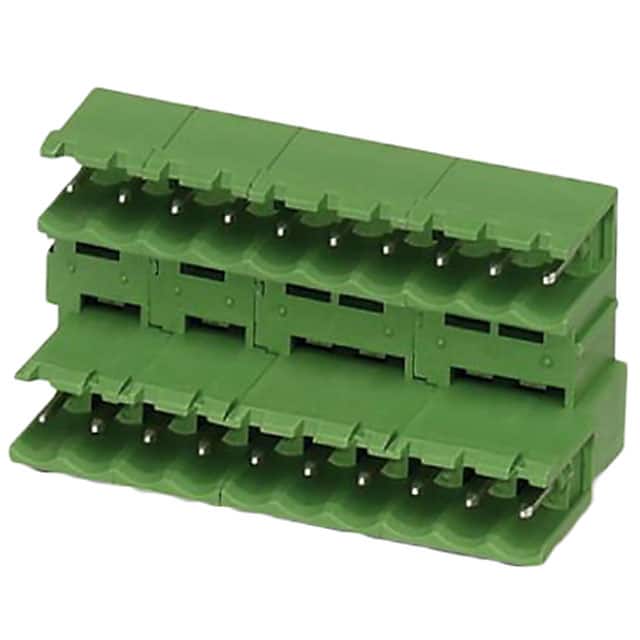

1840052 The Phoenix Contact 1840052 is a 16-position, 2-level, right-angle shrouded header with a 5.08mm pitch. It features through-hole solder termination and tin-plated contacts.
Mfr Part #:

1840052

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 1840052 is a 16-position, 2-level, right-angle shrouded header with a 5.08mm pitch. It features through-hole solder termination and tin-plated contacts.
✓ Total Stock: 42 pcs

1840052 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1840052 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1840052 Description

Short technical summary and product information.

The Phoenix Contact 1840052 is a shielded header designed for use in terminal block connectors. It offers 16 positions arranged in two levels of 8 positions each, with a 5.08mm pitch. The header is right-angle oriented for space-saving PCB layouts. It is rated for 300V and 15A, suitable for industrial control and power distribution applications. The through-hole mounting and solder termination ensure reliable connections. The green housing and tin-plated contacts provide durability. Side interlocking feature allows modular assembly.

1840052 Quick Information

Product Type: Header, Male Pins, Shrouded
Canonical Name: Phoenix Contact 1840052 - TERM BLOCK HDR 16POS 5.08MM
Subcategory: Headers

1840052 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1840052 Features

  • 16 positions in two levels of 8.
  • Right-angle orientation for space saving.
  • Rated for 300V and 15A.
  • Side interlocking for modular assembly.
  • Through-hole solder termination.

1840052 Applications

  • Ideal for industrial control panel wiring.
  • Used in power distribution blocks.
  • Suitable for PLC and I/O modules.
  • Perfect for DIN-rail mounted terminal block systems.

1840052 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

16 positions (8 per level, 2 levels).

What is the pitch?

5.08mm (0.200").

What is the current rating?

15A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole.

What is the header orientation?

90°, Right Angle.

What is the contact mating finish?

Tin.
