| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Failure Rate | |
| For Use With | |
| Lead Spacing | |
| Lead Style | |
| Socket Configuration | |
| Tape & Reel | |
| Termination Style |

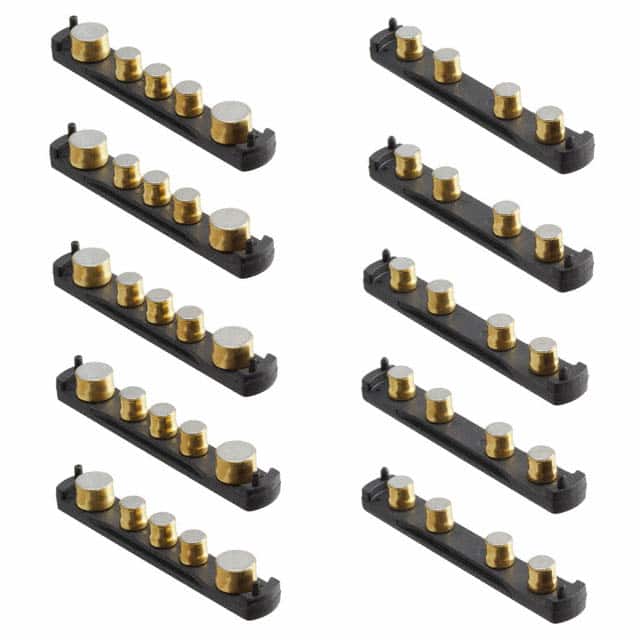

The Vicor 18364 is an InMate socket set designed for use with Vicor Maxi-sized DC-DC converter modules. It provides a 5 input / 5 output socket configuration, enabling easy through-hole mounting and soldering of the module.
The sockets are soldered into the PCB using a through-hole process, and the carrier is removed after soldering. It supports a nominal board thickness of 0.062 inches (1.5 mm) and uses ModuMate pin style. The package contains five sets in a JEDEC tray for automated assembly.
This socket set is ideal for applications requiring secure and reliable connection of Vicor Maxi modules in power supply designs. The InMate system simplifies module insertion and replacement.
The Vicor 18364 is an InMate socket set accessory for Vicor Maxi-sized DC-DC converter modules. It provides 5 input and 5 output sockets in a through-hole solder configuration.
The nominal board thickness is 0.062 inches (1.5 mm).
The socket is through-hole mounted and soldered to the PCB. The carrier is removed after soldering.
Each package contains 5 sets of socket carriers.
The product is listed as RoHS3 compliant, but this compliance is unverified.
The socket uses ModuMate pin style.
This socket set is part of the Vicor InMate series.
