| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

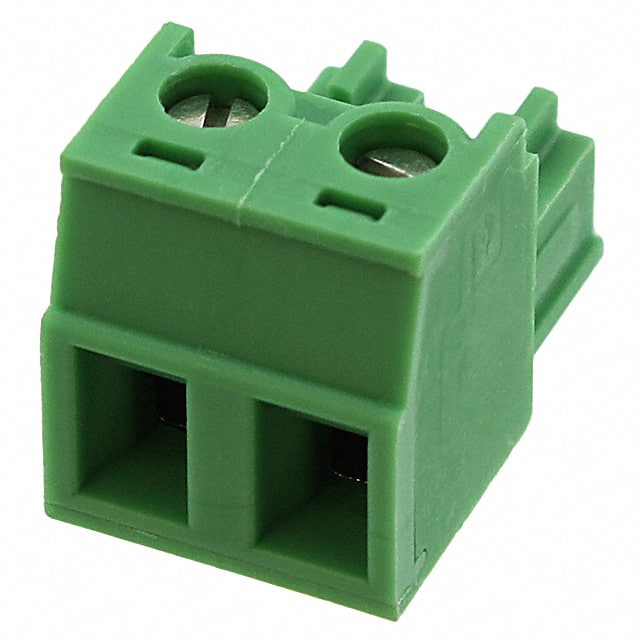

The Phoenix Contact 1836079 is a 2-position plug component from the MC 1,5 series. It features female sockets and uses a screw connection with rising cage clamp termination for secure wire attachment. The plug is designed for free hanging (in-line) mounting and accepts conductors from 28 AWG to 16 AWG with a nominal cross section of 1.5 mm².
Electrical ratings include a nominal current of 8 A and a nominal voltage of 250 V, with rated voltages up to 400 V (II/2) and 320 V (III/2) depending on overvoltage category. The rated surge voltage is 4 kV across all categories. The insulating material is PA (polyamide) with flammability class UL 94 V0.
Mechanical specifications include a pitch of 5.08 mm, height of 11.1 mm, and M2 screw threads with a tightening torque range of 0.22 to 0.25 Nm. The contact mating finish is tin. The plug is color green and has a 180° wire entry direction.
The plug has 2 positions.
The pitch is 5.08 mm (0.200 inches).
The nominal current is 8 A, with a maximum load current of 8 A at 1.5 mm² conductor cross section.
Rated voltage varies by overvoltage category: 250 V nominal, 320 V (III/2), 400 V (II/2). General rating is 300 V.
Free hanging (in-line) mounting.
Screw connection with rising cage clamp.
The plug is green and the insulating material is PA (polyamide) with flammability class UL 94 V0.
