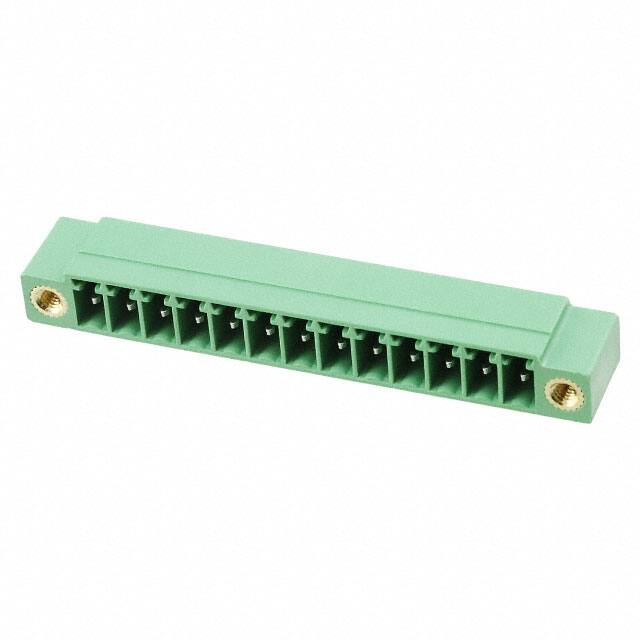

1830703 Phoenix Contact 1830703 is a 13-position terminal block header with a 3.81mm pitch, through hole mounting, and vertical orientation. It features a shrouded design with mating and mounting flange.
Mfr Part #:

1830703

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1830703 is a 13-position terminal block header with a 3.81mm pitch, through hole mounting, and vertical orientation. It features a shrouded design with mating and mounting flange.
✓ Total Stock: 2,090 pcs
$ Price Range: $8.15

1830703 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,090 pcs
On Request
2090 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1830703 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1830703 Description

Short technical summary and product information.

The Phoenix Contact 1830703 is a 13-position terminal block header designed for reliable PCB-to-wire connections. It features a 3.81mm pitch and through hole mounting with solder termination, making it suitable for compact industrial control and automation applications. The header is shrouded on four sides for added protection and includes a mating and mounting flange for secure installation. Rated for 300V and 8A, it offers a green housing with tin-plated contacts. This component is RoHS3 compliant and has an MSL of Level 1 (unlimited). Its vertical orientation simplifies board layout in space-constrained designs.

1830703 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1830703 Terminal Block Header, 13 Positions, 3.81mm Pitch, Through Hole, Vertical, Green
Subcategory: Headers, Plugs and Sockets

1830703 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1830703 Estimated Pricing

Qty Low High
1+ $8.15 $8.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

1830703 Features

  • 13 positions with 3.81mm pitch.
  • Through hole vertical mounting.
  • Rated for 300V and 8A.
  • Shrouded header with 4-side protection.
  • Includes mating and mounting flange.

1830703 Applications

  • Used in industrial control systems.
  • Suitable for PCB-to-wire connections.
  • Ideal for compact terminal block assemblies.
  • Common in automation and instrumentation.

1830703 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

13 positions.

What is the pitch of this terminal block header?

3.81mm (0.150 inches).

What is the current rating of the 1830703?

8 A.

What is the voltage rating of this header?

300 V.

What is the mounting type for this part?

Through hole.

What is the header orientation?

Vertical.

Does this header include any special features?

Yes, it includes a mating and mounting flange.
