| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

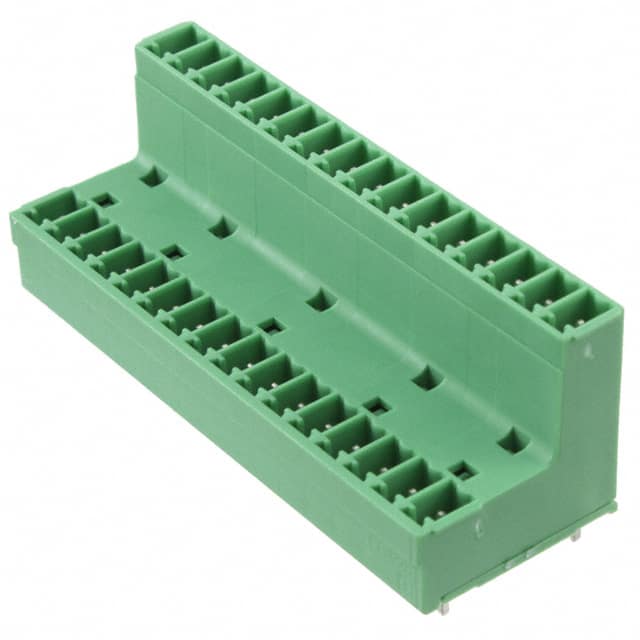

The Phoenix Contact 1830541 is a terminal block header designed for reliable wire-to-board connections in industrial control and automation systems. This component features 32 positions arranged in 2 levels of 16 positions each, with a 3.81mm pitch that provides a compact footprint for dense PCB layouts.
The header uses a through hole mounting style with solder termination, ensuring robust mechanical attachment to the printed circuit board. The vertical orientation allows for straightforward board-to-wire mating. The shrouded (4 side) design protects the male pins and guides the mating plug for secure connections.
Electrical ratings include 300V voltage and 8A current capacity, suitable for signal and moderate power applications. The green housing is standard for Phoenix Contact terminal blocks, and the tin-plated contacts offer good solderability and corrosion resistance.
The 1830541 has 32 positions arranged in 2 levels of 16 positions each.
The pitch is 3.81mm (0.150 inches).
The voltage rating is 300V and the current rating is 8A.
It uses through hole mounting with solder termination.
The contact mating finish is tin.
