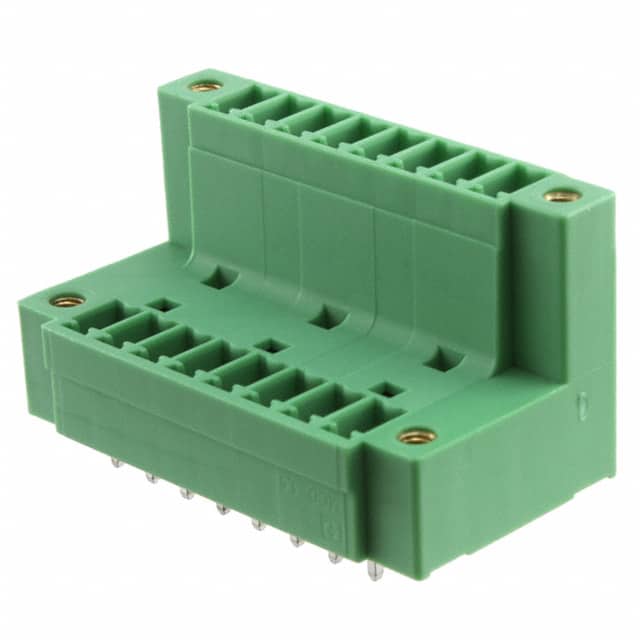

1830318 Terminal block header with 16 positions, vertical orientation, 3.81mm pitch, rated 300V and 8A.
Mfr Part #:

1830318

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header with 16 positions, vertical orientation, 3.81mm pitch, rated 300V and 8A.
✓ Total Stock: 3 pcs

1830318 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1830318 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1830318 Description

Short technical summary and product information.

The Phoenix Contact 1830318 is a 16-position terminal block header with a shrouded (4 side) design. It features 2 levels with 8 positions per level, a pitch of 3.81mm, and a vertical header orientation.



Rated for 300V and 8A, this header uses through-hole mounting and solder termination. The contact mating finish is tin, and the housing is green. A mating flange is included for secure connection with the corresponding plug.



This component is suitable for industrial control, automation, and power distribution applications where reliable wire-to-board connections are required. The compact 3.81mm pitch helps save PCB space while maintaining a robust connection.

1830318 Quick Information

Product Type: Terminal Block Header
Series: 1830318
Canonical Name: Phoenix Contact 1830318 - Terminal Block Header, 16 Position, 3.81mm Pitch, Vertical, Through Hole
Subcategory: Terminal Block Headers

1830318 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1830318 Features

  • 16 positions with 2 levels.
  • 3.81mm pitch for compact designs.
  • Shrouded header with mating flange.
  • Rated for 300V and 8A.
  • Through-hole solder termination.

1830318 Applications

  • Industrial control panel wiring.
  • Automation system connections.
  • Power distribution applications.
  • PLC and I/O module interfaces.

1830318 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the 1830318 have?

16 positions arranged in 2 levels with 8 positions per level.

What is the pitch of this header?

3.81mm (0.150 inches).

What are the electrical ratings?

Rated for 300V and 8A.

What is the mounting style?

Through-hole mounting with solder termination.
