| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Front Panel Wire Connection | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Panel Mount Type | |
| Panel Thickness | |
| Pitch | |
| Positions Per Level | |
| Rear Panel Wire Connection | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style (Front) | |
| Termination Style (Rear) | |
| Voltage | |
| Width |

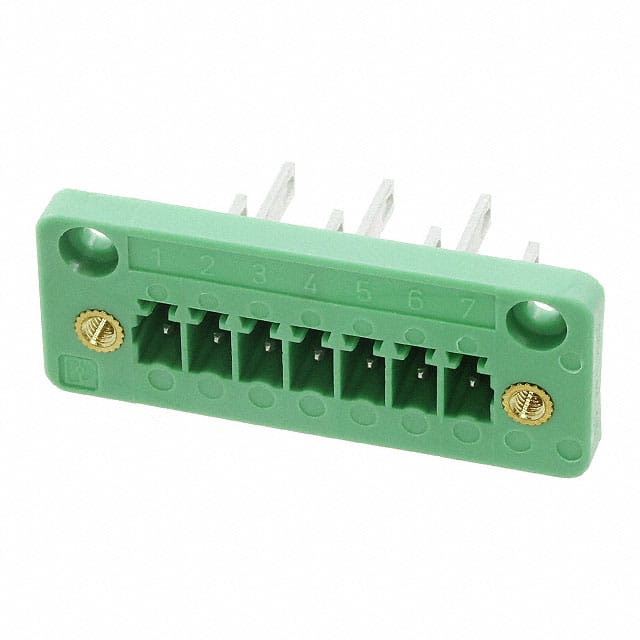

The Phoenix Contact 1829390 is a 7 position panel mount terminal block header designed for reliable wire-to-board connections. It features a single level with 7 positions per level at a 3.81mm pitch. The header is rated for 8A current and 300V voltage, making it suitable for a variety of industrial control and power distribution applications.
The component is green in color and utilizes a screw mount front flange for secure panel attachment. The front panel wire connection is via a header with male pins, while the rear panel connection offers both quick connect (0.110" / 2.80mm) and solder eyelet options. A threaded mating lock ensures a robust connection with the mating plug.
The panel thickness range is 0.020" to 0.157" (0.5mm to 4.0mm). The overall width of the header is 41.06mm (1.617"). This terminal block header is designed for panel mount applications where a compact and secure interface is required.
It has 7 positions per level, with 1 level.
The pitch is 3.81mm (0.150 inches).
Rated for 8A and 300V.
Panel mount with screw mount front flange.
Green.
Quick connect (0.110" / 2.80mm) and solder eyelet.
Yes, it features a threaded mating lock.
