1829167 Phoenix Contact 1829167 is a 3-position, 7.62 mm pitch, through-hole header with vertical orientation and shrouded design. Rated at 12 A and 630 V (III/2).
Mfr Part #:

1829167

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1829167 is a 3-position, 7.62 mm pitch, through-hole header with vertical orientation and shrouded design. Rated at 12 A and 630 V (III/2).
✓ Total Stock: 42 pcs

1829167 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1829167 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1829167 Description

Short technical summary and product information.

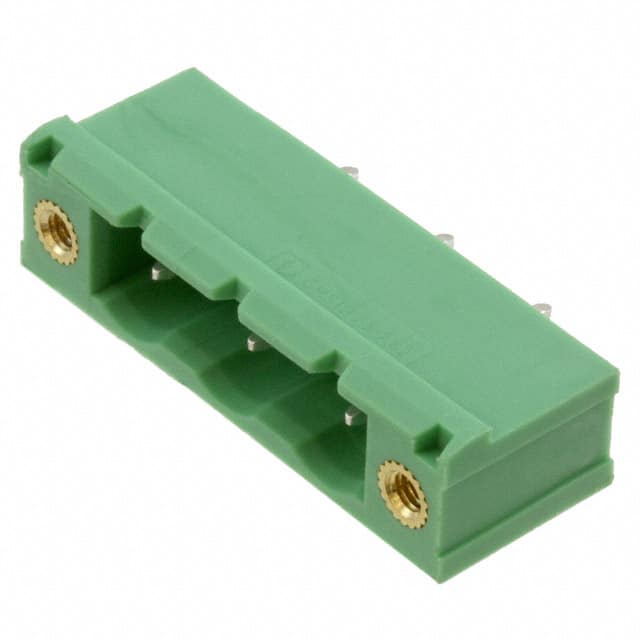

The Phoenix Contact 1829167 is a 3-position terminal block header from the GMSTBV 2,5/..-GF series. It features a 7.62 mm pitch and a vertical through-hole mounting style with solder termination. The header is shrouded on four sides and includes a mating and mounting flange for secure connections.



Electrical ratings include a nominal current of 12 A and a rated voltage of 630 V (III/2) with a rated surge voltage of 6 kV. The insulating material is PA (polyamide) with a flammability rating of UL 94 V0. Contact mating finish is tin.



This header is designed for PCB applications requiring a reliable, high-voltage interconnect. The green color and straight pin dimensions of 1 x 1 mm facilitate easy identification and assembly. The product is manufactured in Germany and is supplied in bulk packaging.

1829167 Quick Information

Product Type: Header, Male Pins, Shrouded
Series: GMSTBV 2,5/..-GF
Canonical Name: Phoenix Contact GMSTBV 2,5/ 3-GF-7,62 Header, Male Pins, Shrouded (4 Side)
Subcategory: Terminal Block Header

1829167 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1829167 Features

  • 3 positions with 7.62 mm pitch.
  • Rated for 12 A nominal current.
  • Rated voltage 630 V (III/2).
  • Through-hole vertical mounting.
  • Shrouded header with mounting flange.

1829167 Applications

  • Used in industrial control panels.
  • Suitable for power distribution systems.
  • Ideal for PCB-to-wire connections.
  • Applied in automation equipment.

1829167 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1829167 header have?

The header has 3 positions.

What is the pitch of the 1829167?

The pitch is 7.62 mm.

What is the current rating of the 1829167?

The nominal current is 12 A.

What is the voltage rating of the 1829167?

The rated voltage (III/2) is 630 V.

What mounting type does the 1829167 use?

Through-hole mounting.

What is the color of the 1829167 header?

Green.

What is the flammability rating of the insulating material?

UL 94 V0.
