| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

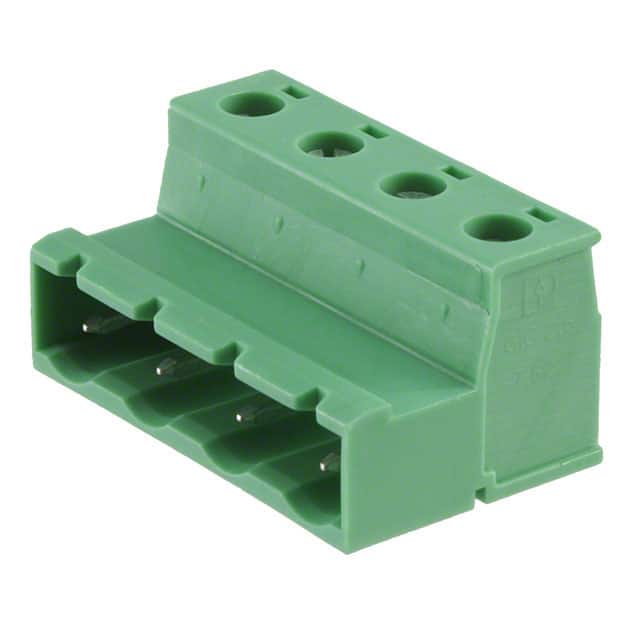

The Phoenix Contact 1828825 is a 4-position terminal block plug designed for reliable wire connections in industrial and commercial applications. It features male pins with a 7.62mm pitch and uses a screw rising cage clamp termination method, ensuring secure and vibration-resistant connections. The plug is rated for 300V and 10A, making it suitable for moderate power distribution and control circuits. It accepts wire sizes from 0.2 to 2.5mm² and has a tin contact mating finish for good conductivity and corrosion resistance. The free hanging (in-line) mounting type allows flexible installation without requiring a fixed panel or rail. The green housing provides visual identification for grounding or phase wiring. This plug is part of the Phoenix Contact terminal block family and is commonly used in conjunction with matching headers.
The 1828825 has 4 positions.
The pitch is 7.62mm.
The current rating is 10A.
The voltage rating is 300V.
It uses free hanging (in-line) mounting.
The termination style is screw - rising cage clamp.
It accepts wire from 0.2 to 2.5mm².
