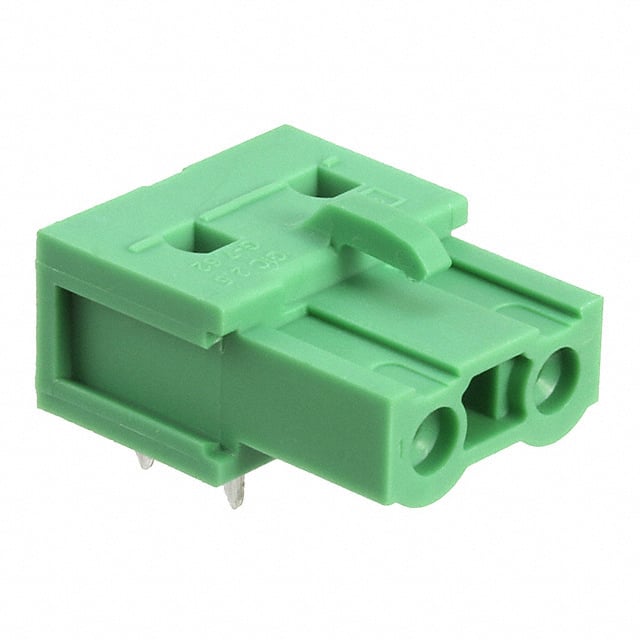

1828676 The Phoenix Contact 1828676 is a 2-position header with female sockets, 7.62mm pitch, right angle orientation, and through hole mounting. Rated for 12A and 630V.
Mfr Part #:

1828676

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 1828676 is a 2-position header with female sockets, 7.62mm pitch, right angle orientation, and through hole mounting. Rated for 12A and 630V.
✓ Total Stock: 45 pcs

1828676 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1828676 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Failure Rate
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1828676 Description

Short technical summary and product information.

The Phoenix Contact 1828676 is a 2-position header from the GIC 2,5/..-G series. It features female sockets with a 7.62mm pitch and a right angle orientation for through hole soldering. The connector is molded in green PA (polyamide) with a V0 flammability rating according to UL 94. Contact surfaces are tin plated. Retention latches provide secure mating with matching plugs. Pin dimensions are 1.2 x 0.5 mm, with a recommended hole diameter of 1.4 mm. The overall length is 19 mm.



Electrical ratings include a nominal current of 12 A and a rated voltage of 630 V (III/2). Rated surge voltage is 6 kV. The header is suitable for use in shock-proof applications up to 630 V and for board-to-board connections. It is approved under UL, CSA, VDE, cUL, IECEE CB Scheme, and GOST standards.



Mounting is through hole with solder termination, making it ideal for PCB integration in industrial control systems, power distribution, and wiring applications.

1828676 Quick Information

Product Type: Header, Female Sockets
Series: GIC 2,5/..-G
Canonical Name: Header, Female Sockets, 2 Position, 7.62mm Pitch, Right Angle, Through Hole, Tin, Green
Subcategory: Headers

1828676 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1828676 Features

  • 2 positions with 7.62mm pitch.
  • Right angle through hole mounting.
  • Rated for 12A and 630V.
  • Green PA insulation with V0 rating.
  • Tin plated contacts for reliability.

1828676 Applications

  • For PCB terminal block connections.
  • Use in shock-proof power applications.
  • Suitable for board-to-board wiring.
  • Ideal for industrial control systems.

1828676 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

2 positions.

What is the pitch of this header?

7.62 mm.

What is the current rating?

12 A.

What is the voltage rating?

630 V (III/2).

What is the mounting type?

Through hole.

What is the termination style?

Solder.

What series does this header belong to?

GIC 2,5/..-G.
