| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Height | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

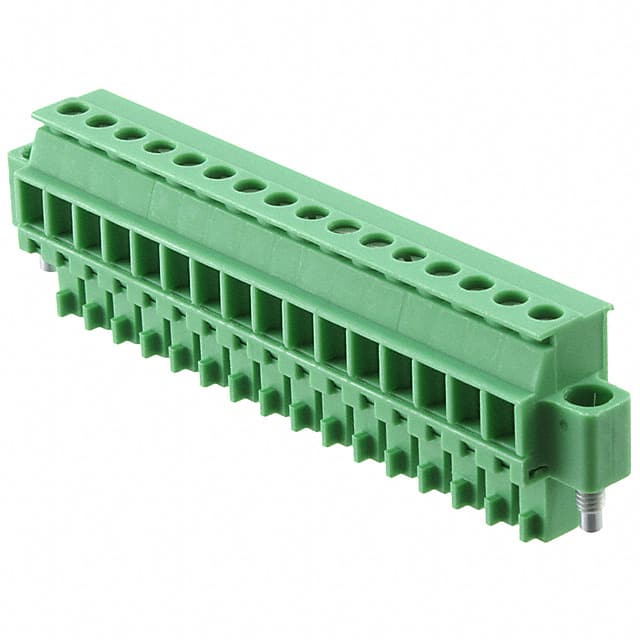

The Phoenix Contact 1828485 is a 16-position plug component from the MCVR 1.5/..-STF series, offering a reliable screw connection via rising cage clamp termination. The plug features a pitch of 3.81 mm and accepts solid or stranded conductors from 0.14 mm² to 1.5 mm² (28–16 AWG). Its compact design (height 12.5 mm) and 90° wire entry simplify wiring in space-constrained assemblies.
Electrical ratings include a nominal current of 8 A (maximum load current 8 A) and a rated voltage up to 300 V per UL/CUL Use Group B and D. The insulating material is polyamide (PA) with a flammability class UL 94 V0, and the contact mating finish is tin.
The plug is free hanging (in-line) and includes a mating flange for secure connection to a matching header. Minimum tightening torque is 0.22 Nm, maximum 0.25 Nm, with a stripping length of 7 mm. This component is RoHS3 compliant and REACH unaffected.
It has 16 positions, one level.
The pitch is 3.81 mm.
Nominal current is 8 A, rated voltage is 300 V (UL/CUL Use Group B and D).
Free hanging (in-line) mounting.
Screw connection with rising cage clamp.
Yes, it is RoHS3 compliant.
It accepts solid or stranded conductors from 0.14 mm² to 1.5 mm² (28 to 16 AWG).
