| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,598 pcs
|
1598 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Halogen Free | |
| Header Orientation | |
| Hole Diameter | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

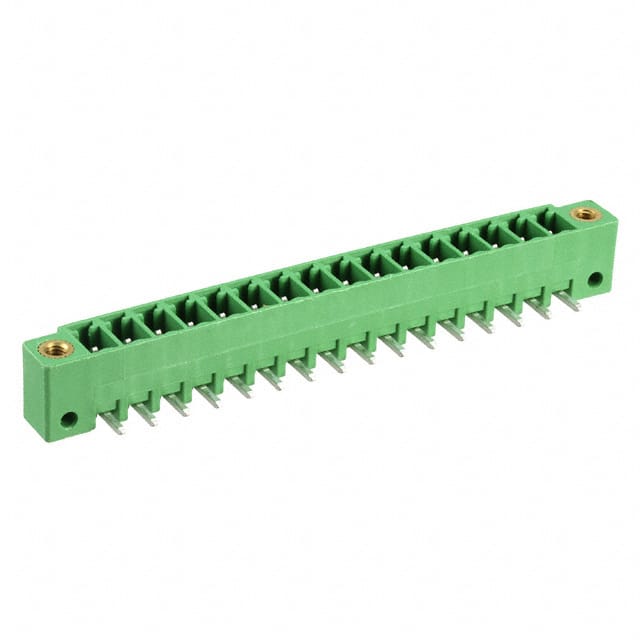

This Phoenix Contact terminal block header, part number 1828003 from the MC 1,5 series, is a 16-position shrouded header with a 3.81mm pitch. The header features male pins with a tin contact mating finish and a right angle (90°) orientation, designed for through hole soldering onto a printed circuit board.
Electrical ratings include a nominal current of 8 A and a rated voltage of 300 V per UL/CSA Use Group B and D. The insulating material is PBT with a flammability rating of UL 94 V-0. The header includes a mating and mounting flange for secure connection.
The body is green. Pin dimensions are 0.8 x 0.8 mm with a 1.2 mm recommended hole diameter. The header length is 9.2 mm and dimension a (center to first pin) is 57.15 mm.
The pitch is 3.81 mm (0.150 inches).
The header has 16 positions.
The nominal current rating is 8 A.
The UL rated voltage is 300 V. Rated voltage per EN (III/2) is 160 V and (II/2) is 250 V.
The mounting type is through hole with solder termination.
The contact mating finish is tin.
Yes, it features a mating and mounting flange.
