1827923 8-position 3.81mm pitch right angle shrouded header from Phoenix Contact. Through hole solder termination with tin contact finish, rated for 300V and 8A.
Mfr Part #:

1827923

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
8-position 3.81mm pitch right angle shrouded header from Phoenix Contact. Through hole solder termination with tin contact finish, rated for 300V and 8A.
✓ Total Stock: 37 pcs

1827923 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
37 pcs
On Request
37 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827923 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1827923 Description

Short technical summary and product information.

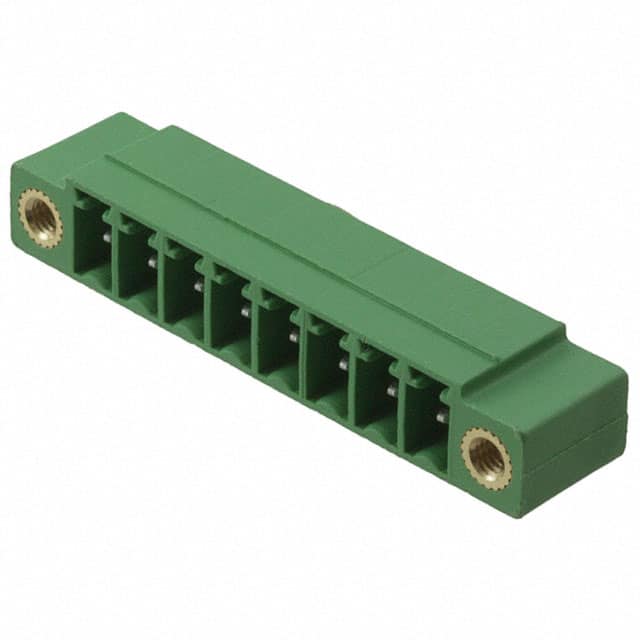

This Phoenix Contact header is an 8-position, single-level, 3.81mm pitch right angle shrouded header with male pins. It features a green housing and a mating and mounting flange for secure connection. The through hole mounting with solder termination ensures reliable PCB attachment. Contacts are finished with tin for good conductivity. Rated for 300V and 8A, this header is suitable for various industrial and commercial terminal block applications. The 4-sided shrouding provides protection and alignment during mating. The right angle orientation allows for compact wiring layouts, making it ideal for use in control panels, PLCs, and building automation systems. This component is part of the Phoenix Contact range of terminal block connectors.

1827923 Quick Information

Product Type: Terminal Block Header
Canonical Name: 8 Position 3.81mm Pitch Right Angle Shrouded Header, Male Pins, Through Hole, Tin
Subcategory: Headers

1827923 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1827923 Features

  • 8 positions in a single level.
  • 3.81mm pitch for compact wiring.
  • Right angle orientation for PCB edge.
  • Through hole solder termination.
  • Rated for 300V and 8A.

1827923 Applications

  • Used in industrial control panels.
  • Suitable for PLC and I/O modules.
  • Ideal for sensor and actuator wiring.
  • Common in building automation systems.

1827923 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

8 positions.

What is the pitch of this header?

3.81 mm (0.150 inches).

What is the current rating of this header?

8 A.

What is the voltage rating of this header?

300 V.

What is the mounting type of this header?

Through hole.

What is the contact termination finish?

Tin.

What color is the housing?

Green.
