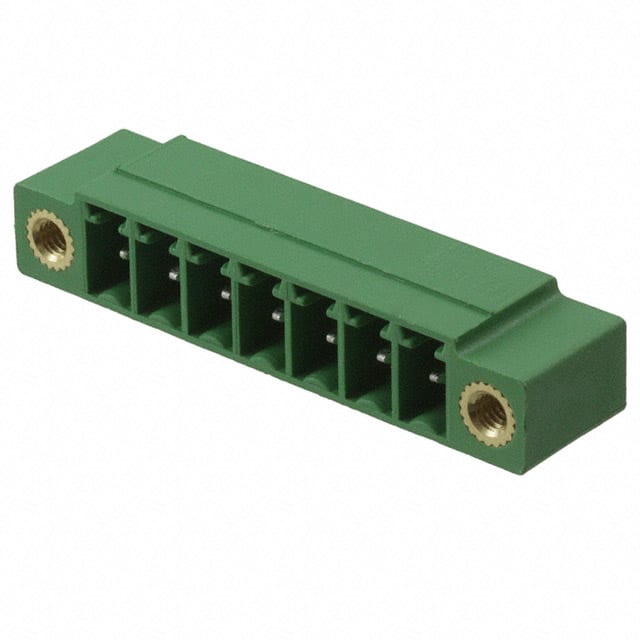

1827910 Phoenix Contact 1827910 is a 7-position, 3.81mm pitch, right angle terminal block header with through hole mounting. It features a shrouded design with mating and mounting flange, rated for 8A and 160V.
Mfr Part #:

1827910

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1827910 is a 7-position, 3.81mm pitch, right angle terminal block header with through hole mounting. It features a shrouded design with mating and mounting flange, rated for 8A and 160V.
✓ Total Stock: 290 pcs

1827910 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
290 pcs
On Request
290 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827910 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Halogen Free
Header Orientation
Hole Diameter
Industrial Grade
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1827910 Description

Short technical summary and product information.

The Phoenix Contact 1827910 is a header from the MC 1,5/..-GF series, designed for use in terminal block systems. It has 7 positions arranged in a single level with a pitch of 3.81mm. The header is oriented at 90 degrees (right angle) and is shrouded on four sides for protection. It features a mating and mounting flange for secure connection. The contact mating finish is tin, and the housing is green PBT with a UL 94 V0 flammability rating. Electrical ratings include a nominal current of 8A, rated voltage of 160V (III/2) and 250V (II/2), and surge voltage of 2.5kV. The header is through hole mounted with solder termination. Pin dimensions are 0.8 x 0.8 mm with a hole diameter of 1.2 mm. The overall length is 9.2 mm with a dimension a of 22.86 mm. The insulating material group is IIIa. This header is suitable for PCB applications requiring a compact, right-angle connection.

1827910 Quick Information

Product Type: Terminal Block Header
Series: MC 1,5/..-GF
Canonical Name: Phoenix Contact MC 1,5/ 7-GF-3,81 Header, 7 Positions, 3.81mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1827910 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1827910 Features

  • 7 positions with 3.81mm pitch.
  • Right angle orientation for space-saving PCB layout.
  • Rated for 8A nominal current.
  • Shrouded header with mating and mounting flange.
  • UL 94 V0 flammability rated PBT housing.

1827910 Applications

  • Used in industrial control systems.
  • Ideal for PCB-to-wire connections.
  • Suitable for power distribution in terminal blocks.
  • Common in automation and instrumentation.

1827910 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1827910 have?

7 positions.

What is the pitch of this header?

3.81mm.

What is the current rating?

8A nominal current.

What is the voltage rating?

160V (III/2) and 250V (II/2).

What is the mounting type?

Through hole.

What is the color of the housing?

Green.

What is the flammability rating?

UL 94 V0.
