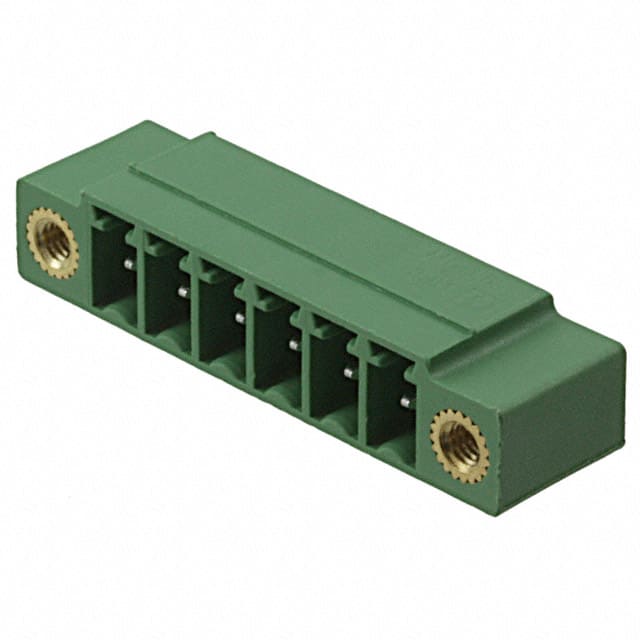

1827907 Phoenix Contact 1827907 is a 6-position, 3.81mm pitch terminal block header with shrouded male pins, right angle orientation, through hole solder termination, and a mating and mounting flange feature.
Mfr Part #:

1827907

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1827907 is a 6-position, 3.81mm pitch terminal block header with shrouded male pins, right angle orientation, through hole solder termination, and a mating and mounting flange feature.
✓ Total Stock: 40 pcs

1827907 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827907 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Header Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1827907 Description

Short technical summary and product information.

The Phoenix Contact 1827907 is a terminal block header designed for reliable wire-to-board connections in industrial control and automation applications. It features a shrouded (4 side) male pin configuration with 6 positions arranged in a single level at a 3.81mm pitch.



This right-angle header allows for a low-profile 90-degree connection to the PCB, saving space in tight enclosures. It is rated for 8A of current and 300V, with tin-plated contacts for durable, cost-effective electrical performance. The green housing provides clear visual identification.



The component is designed for through-hole soldering, ensuring a robust mechanical bond to the printed circuit board. The inclusion of a mating and mounting flange enhances stability when mated with a corresponding plug, making it suitable for applications where vibration resistance is required.

1827907 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1827907 Terminal Block Header, Male Pins, Shrouded (4 Side), 6 Positions, 1 Level, 3.81mm Pitch, Right Angle, Through Hole, Solder, Tin Contacts
Subcategory: Terminal Block Headers

1827907 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1827907 Features

  • 6 positions with 3.81mm pitch spacing.
  • Right angle 90-degree header orientation.
  • Rated for 8A current and 300V voltage.
  • Through-hole solder termination for robust PCB mounting.
  • Mating and mounting flange for secure connection.

1827907 Applications

  • Industrial control panel wiring interfaces.
  • Automation equipment terminal block connections.
  • Low-profile right-angle PCB mounting solutions.
  • Vibration-resistant wire-to-board applications.

1827907 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1827907 header have?

The header has 6 positions arranged in 1 level with 6 positions per level.

What is the pitch of the 1827907 terminal block header?

The pitch is 3.81mm (0.150 inches).

What is the current and voltage rating of the 1827907?

The current rating is 8A and the voltage rating is 300V.

What is the mounting type for the 1827907?

The mounting type is through hole, with solder termination.

What is the orientation and finish of the 1827907 header?

The header orientation is 90 degrees (right angle) and the contact mating finish is tin.
