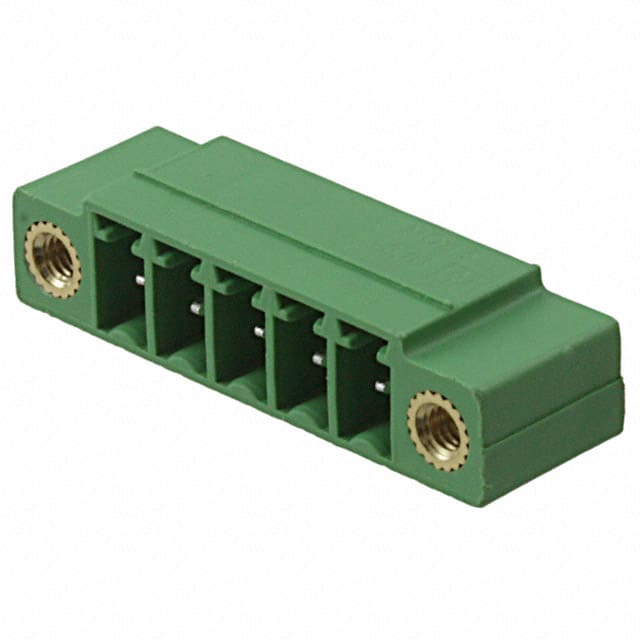

1827897 Phoenix Contact 1827897 is a 5-position, single-level, 3.81mm pitch terminal block header with male pins, shrouded on four sides, right angle orientation, and through hole solder mounting.
Mfr Part #:

1827897

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1827897 is a 5-position, single-level, 3.81mm pitch terminal block header with male pins, shrouded on four sides, right angle orientation, and through hole solder mounting.
✓ Total Stock: 1,381 pcs

1827897 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,295 pcs
On Request
1295 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
86 pcs
On Request
86 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827897 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1827897 Description

Short technical summary and product information.

The Phoenix Contact 1827897 is a terminal block header designed for use with compatible plug connectors. It features 5 positions arranged in a single level with a pitch of 3.81mm (0.150 inches), providing a compact yet reliable interconnection solution.



This header has male pins and is shrouded on four sides for added protection and mating alignment. The connector is oriented at a 90-degree right angle and is through-hole mounted with solder termination, making it suitable for PCB edge designs. The housing is green, and the contact mating finish is tin.



Rated for 300V and 8A, the header also includes mating and mounting flanges for secure connections in industrial control, automation, and instrumentation applications.

1827897 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1827897 Header, Male Pins, Shrouded (4 Side), 5 Positions, 3.81mm Pitch, Through Hole, Right Angle, Green, Tin Contacts, 300V, 8A
Subcategory: Headers, Plugs and Sockets

1827897 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1827897 Features

  • 5 positions in single level arrangement.
  • 3.81mm pitch for compact PCB layout.
  • Shrouded on four sides for protection.
  • Rated for 300V and 8A operation.
  • Includes mating and mounting flange.

1827897 Applications

  • Industrial control panel wiring systems.
  • Automation and process control equipment.
  • Instrumentation and signal I/O connections.
  • PCB-to-wire interface in DIN-rail systems.

1827897 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1827897 have?

The Phoenix Contact 1827897 has 5 positions in a single level.

What is the pitch of the 1827897 terminal block header?

The pitch is 3.81mm (0.150 inches).

What are the voltage and current ratings for Phoenix Contact 1827897?

The voltage rating is 300V and the current rating is 8A.

What mounting type does the 1827897 use?

It uses through-hole mounting with solder termination.
