| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

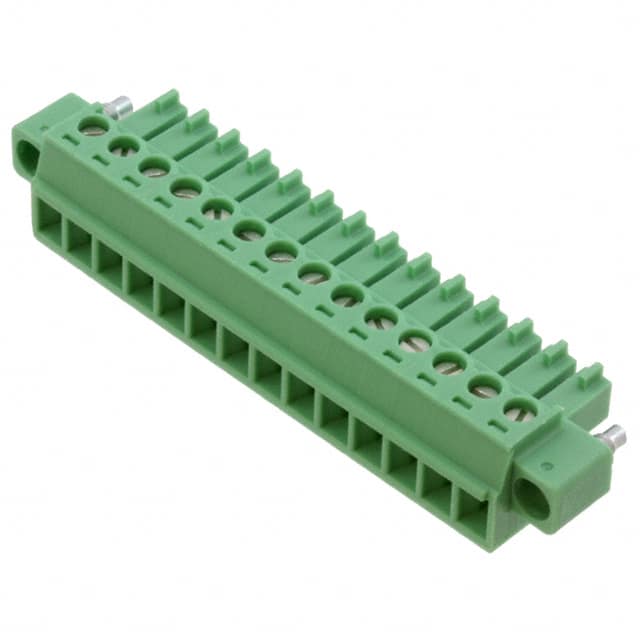

This is a 14-position terminal block plug with female sockets from Phoenix Contact, part number 1827826. It features a 3.81mm pitch and is designed for free hanging (in-line) mounting. The termination style is screw with rising cage clamp, ensuring secure wire connections.
Electrical specifications include a current rating of 8A and voltage rating of 300V. The wire gauge range is 0.14-1.5mm². The plug has a mating flange feature for secure connection to the header.
The contact mating finish is tin, and the housing is green. It is a single-level plug with 14 positions per level. The wire entry is 180° (straight). This plug is suitable for various industrial and automation applications requiring reliable signal or power connections.
14 positions.
3.81mm (0.150 inches).
8A.
300V.
Free hanging (in-line).
0.14-1.5mm².
Screw - rising cage clamp.
