| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

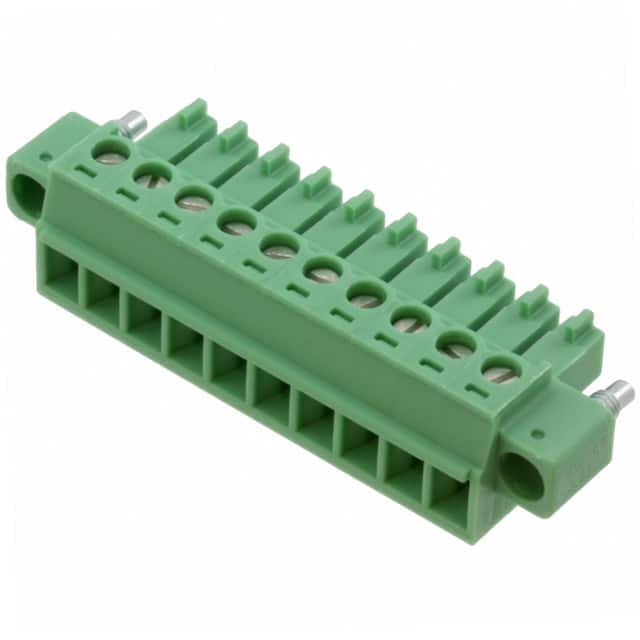

The Phoenix Contact 1827787 is a 10-position terminal block plug designed for wire-to-board connections in industrial control and automation systems. It features a 3.81mm pitch and accepts wire gauges from 0.14 to 1.5 mm². The plug uses a screw rising cage clamp termination style, ensuring secure and reliable connections.
Rated for 8 A at 300 V, this plug is suitable for signal-level power distribution and sensor/actuator wiring. The 180° wire entry simplifies installation in tight spaces, while the mating flange feature provides additional mechanical retention when mated with a corresponding header.
The plug is free hanging (in-line) mounted, offering flexibility in panel and enclosure wiring. The tin-plated contacts provide good conductivity and corrosion resistance. The green color is standard for terminal block connectors, aiding quick visual identification.
This plug has 10 positions.
The pitch is 3.81 mm.
The current rating is 8 A.
The voltage rating is 300 V.
It uses free hanging (in-line) mounting.
Screw - Rising Cage Clamp termination.
Wire gauge range is 0.14 to 1.5 mm².
