1827729 4-position terminal block plug from Phoenix Contact with 3.81mm pitch and screw rising cage clamp termination. Rated for 300V and 8A, suitable for free hanging (in-line) mounting.
Mfr Part #:

1827729

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
4-position terminal block plug from Phoenix Contact with 3.81mm pitch and screw rising cage clamp termination. Rated for 300V and 8A, suitable for free hanging (in-line) mounting.
✓ Total Stock: 7 pcs

1827729 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827729 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1827729 Description

Short technical summary and product information.

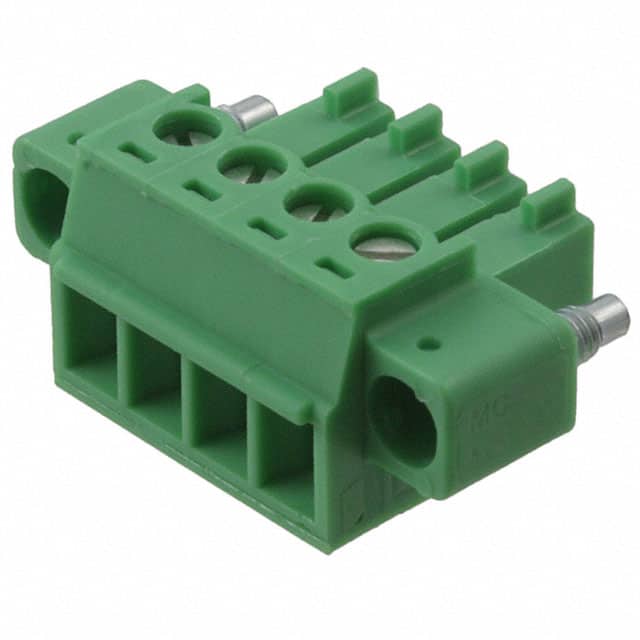

The Phoenix Contact 1827729 is a 4-position terminal block plug with female sockets, part of the 3.81mm pitch series. It features screw rising cage clamp termination for secure wire connections.



Electrical ratings include 300V voltage and 8A current. The wire gauge range is 0.14-1.5mm², and the contact mating finish is tin.



Mechanically, it offers free hanging (in-line) mounting with 180° plug wire entry. The color is green, and it includes a mating flange feature. Positions per level are 4 with 1 level.



This plug is suitable for industrial control systems, power distribution, and signal wiring where reliable pluggable connections are needed.

1827729 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1827729 - 4 Position Terminal Block Plug, Female Sockets, 3.81mm Pitch, Screw Termination
Subcategory: Headers, Plugs and Sockets

1827729 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1827729 Features

  • 4 positions with 3.81mm pitch spacing.
  • Screw rising cage clamp termination.
  • Rated for 300V and 8A operation.
  • Free hanging in-line mounting style.
  • Green color with mating flange feature.

1827729 Applications

  • Used in industrial control panel wiring.
  • Ideal for power distribution applications.
  • Suitable for signal connection in automation.
  • Pluggable connection for easy maintenance.

1827729 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1827729 terminal block have?

4 positions.

What is the pitch of the 1827729?

3.81mm (0.150 inches).

What is the current rating of the 1827729?

8 A.

What is the voltage rating of the 1827729?

300 V.

What is the mounting type of the 1827729?

Free hanging (in-line).

What termination style does the 1827729 use?

Screw - Rising Cage Clamp.

What wire gauge range is compatible with the 1827729?

0.14-1.5mm².
