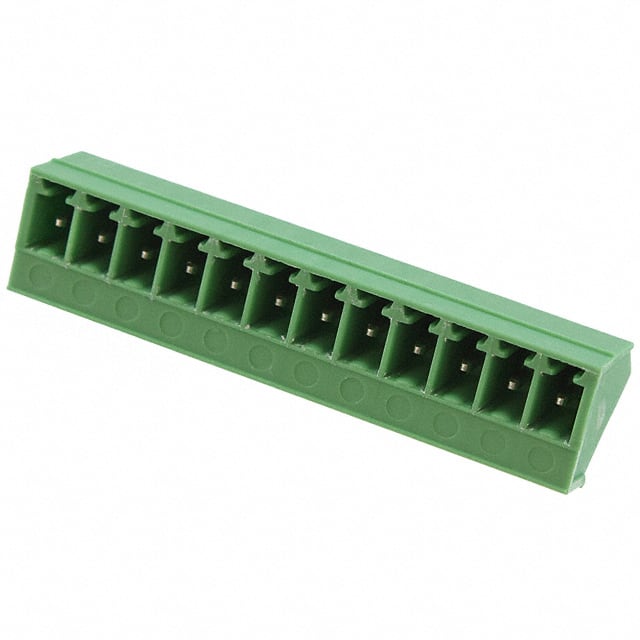

1827376 Phoenix Contact 1827376 is a 12-position, single-level terminal block header with a 3.81mm pitch. It features male pins, shrouded on four sides, a 45° header orientation, and through hole solder termination.
Mfr Part #:

1827376

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1827376 is a 12-position, single-level terminal block header with a 3.81mm pitch. It features male pins, shrouded on four sides, a 45° header orientation, and through hole solder termination.
✓ Total Stock: 23 pcs

1827376 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827376 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Halogen Free
Header Orientation
Hole Diameter
Industrial Grade
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1827376 Description

Short technical summary and product information.

The Phoenix Contact 1827376 is a base strip header from the SMC 1,5/..-G series, designed for use in terminal block interconnect systems. It has 12 positions arranged in a single level with a 3.81mm pitch, and the header is oriented at 45°. The component uses male pins with a tin contact mating finish and is housed in a green PA insulating material rated V0 per UL 94.



Electrically, the header is rated for a nominal current of 8 A and a maximum load current of 8 A. The rated voltage is 160 V for overvoltage category III/2 and 320 V for category II/2. It withstands a rated surge voltage of 2.5 kV across multiple overvoltage categories. The insulating material group is I.



Mechanically, the header has a length of 13.1 mm, a dimension a of 41.91 mm, pin dimensions of 0.8 x 0.8 mm, and a hole diameter of 1.2 mm. It is designed for through hole mounting with solder termination, making it suitable for wave soldering assembly processes.

1827376 Quick Information

Product Type: Terminal Block Header
Series: SMC 1,5/..-G
Canonical Name: Phoenix Contact SMC 1,5/12-G-3,81 Header, Male Pins, Shrouded (4 Side), 12 Positions, 3.81mm Pitch, Through Hole, Solder Termination
Subcategory: Terminal Block Headers

1827376 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1827376 Features

  • 12 positions with 3.81mm pitch.
  • Rated for 8 A nominal current.
  • Rated voltage 160 V (III/2).
  • Through hole solder termination.
  • Green PA housing, UL 94 V0 rated.

1827376 Applications

  • Used in industrial control panel wiring.
  • Suitable for power distribution blocks.
  • Ideal for PLC and I/O module connections.
  • Applicable in building automation systems.

1827376 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1827376 have?

The 1827376 has 12 positions arranged in a single level.

What is the pitch of this terminal block header?

The pitch is 3.81 mm.

What is the current rating of the 1827376?

The nominal current rating is 8 A, with a maximum load current of 8 A.

What is the voltage rating for the 1827376?

The rated voltage is 160 V for overvoltage category III/2 and 320 V for category II/2.

What mounting type does this header use?

It uses through hole mounting with solder termination.

What is the flammability rating of the housing material?

The insulating material is PA with a flammability class of V0 per UL 94.

What is the contact mating finish on the 1827376?

The contact mating finish is tin.
