| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | 0349- | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

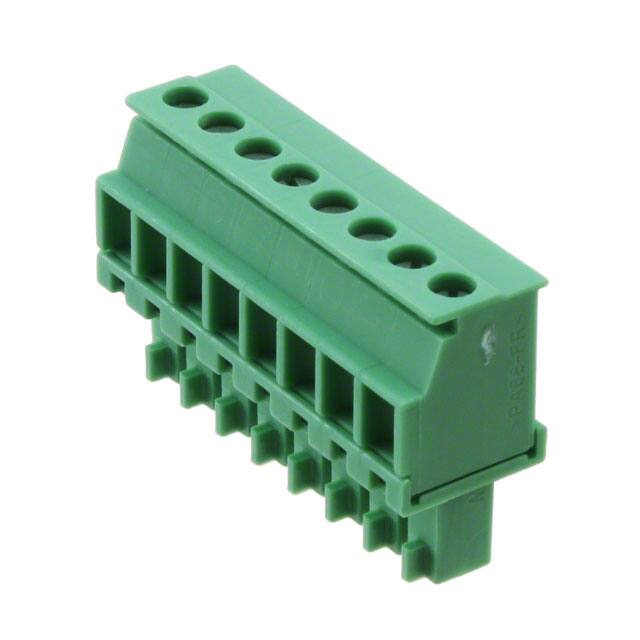

The Phoenix Contact 1827185 is a terminal block plug designed for reliable wire connections in industrial and commercial applications. It has 8 positions in a single level with a pitch of 3.81mm. The termination style is screw with a rising cage clamp, ensuring secure wire retention. It accepts wire gauges from 0.14 to 1.5mm². The plug is rated for 8A current and 300V voltage, with a contact mating finish of tin. The mounting type is free hanging (in-line) with a 90° plug wire entry. The housing is green in color. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is suitable for use in various interconnection applications within terminal block systems.
8 positions.
3.81mm (0.150").
8A.
300V.
Free hanging (in-line).
Screw - rising cage clamp.
0.14-1.5mm².
