| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,069 pcs
|
14069 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Exit | |
| Cable Opening | |
| Color | |
| Diameter | |
| Features | |
| Material | |
| Shell Size | |
| Tape & Reel | |
| Thread Size | |
| Type |

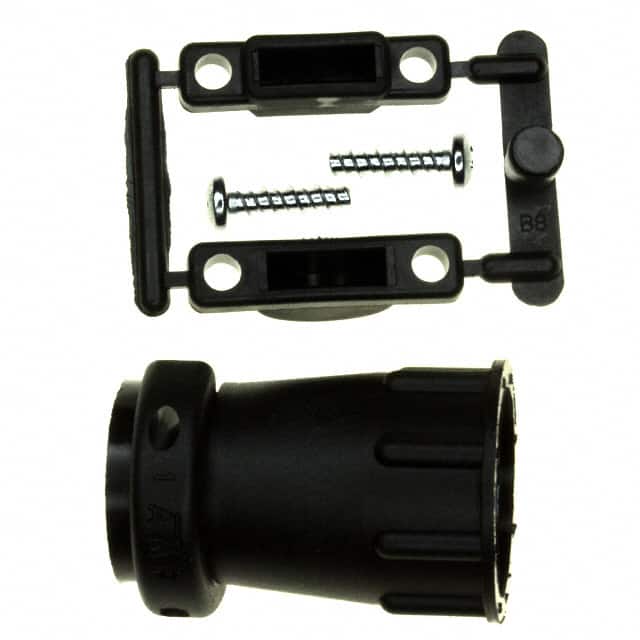

The 182663-1 from TE Connectivity is a backshell with integrated cable clamp designed for use with circular connectors. It accommodates shell size 13 and features a 3/4-20 UNEF thread for mating. The 180° cable exit allows straight cable routing, and the cable opening of 0.453 inches (11.51 mm) provides clearance for appropriate cable diameters.
The backshell is constructed from black thermoplastic and includes clamp screws for secure cable retention. With an overall diameter of 24.10 mm (0.949 inches), it offers a compact solution for cable management in connector assemblies. The part is listed as RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
Standard package quantity is 1 piece. This backshell is suitable for applications requiring reliable cable strain relief in circular connector systems.
Shell size 13.
3/4-20 UNEF.
180°.
0.453 inches (11.51 mm).
Thermoplastic.
Black.
Yes, it features clamp screws.
