| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,800 pcs
|
4800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Exit | |
| Cable Opening | |
| Color | |
| Diameter | |
| Features | |
| Material | |
| Shell Size | |
| Storage Temperature | |
| Tape & Reel | |
| Thread Size | |
| Type |

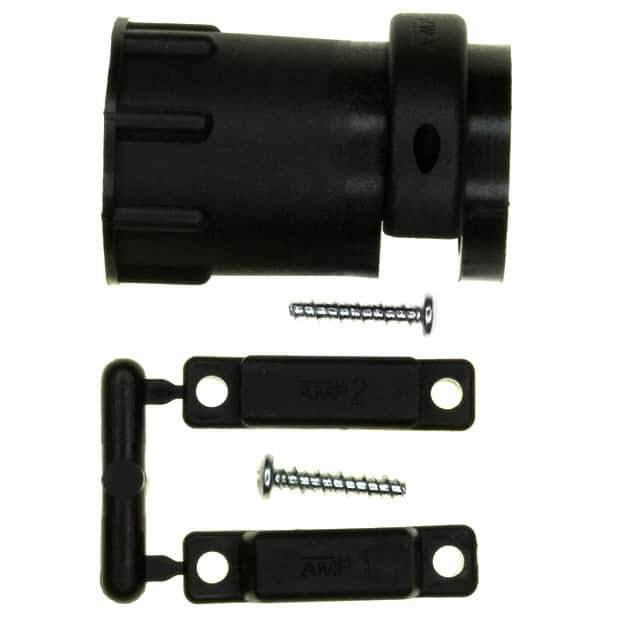

The TE Connectivity 182661-1 is a backshell with integrated cable clamp designed for size 17 circular connectors. It provides mechanical strain relief and cable retention via clamp screws, with a 180° straight cable exit.
The backshell uses a 15/16-20 UNEF thread for attachment to the connector. Its thermoplastic body is black, with a cable opening of 17.86 mm (0.703 inches) accommodating cables up to about 17.9 mm diameter. The outer diameter measures 28.70 mm (1.130 inches).
This component is RoHS3 and REACH compliant (unverified), with an MSL rating of 1 (unlimited floor life). It is suitable for harsh environments requiring reliable cable anchoring in circular connector assemblies.
The 182661-1 backshell has shell size 17.
The thread size is 15/16-20 UNEF.
The cable opening is 17.86 mm (0.703 inches), accommodating cables of approximately 17.9 mm diameter.
The backshell is made of black thermoplastic.
Yes, it is a backshell with integrated cable clamp featuring clamp screws.
